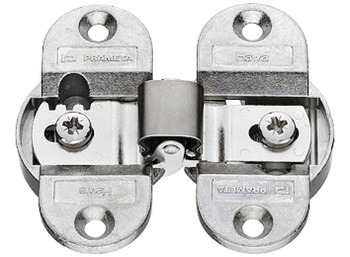

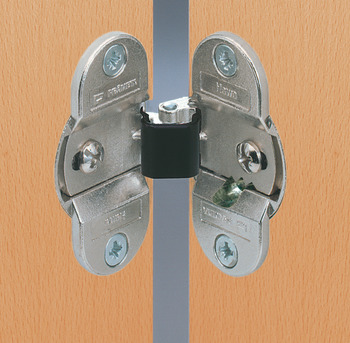

180D Hinge 13mm for Folding Drs SF Zinc Alloy NP Cup: Nickel Plated, Hinge Arm: Zinc Plated
Product Code: 343.91.600
180D Hinge 13mm for Folding Drs SF Zinc Alloy NP Cup: Nickel Plated, Hinge Arm: Zinc Plated
Product Code: 343.91.600
321 In stock
£25.73
Ex. VAT: £21.44
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 1 | £25.73 | — |
| 2 – 4 | £24.44 | Save 5% |
| 5 – 9 | £23.16 | Save 10% |
| 10+ | £20.58 | Save 20% |
- Products Description
- Technical Specifications
- Dimensions
Area of application: For folding doors
Version: With spring: Extending and folding spring force stabilised, With adjustable pivot offset
For door material: Wood
Door processing for assembly: Processing not required
Material: Zinc alloy
Colour/finish: Cup: nickel plated, Hinge arm: zinc plated
Opening angle: 180°
For door thickness: ≥13 mm
For door width: ≤600 mm

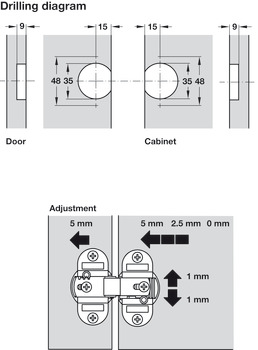

Cup drilling depth: 9 mm
Cup drilling Ø: 35 mm
Cup fixing: For screw fixing
Adjustment facility: Side adjustment 0/+5 mm, Height adjustment ±1 mm, Adjustable gap 0–10 mm (factory setting 3 mm gap, pivot point 1.5 mm off centre)
Installation: For screw fixing
Installation note: Plan number and position of folding door hinges in accordance with the number and position of the door hingesProvide spacer with gap > 0 mm
Order reference: Order Hospa Ø 4.0 mm countersunk screws separately
Version: With spring: Extending and folding spring force stabilised, With adjustable pivot offset
For door material: Wood
Door processing for assembly: Processing not required
Material: Zinc alloy
Colour/finish: Cup: nickel plated, Hinge arm: zinc plated
Opening angle: 180°
For door thickness: ≥13 mm
For door width: ≤600 mm
Cup drilling depth: 9 mm
Cup drilling Ø: 35 mm
Cup fixing: For screw fixing
Adjustment facility: Side adjustment 0/+5 mm, Height adjustment ±1 mm, Adjustable gap 0–10 mm (factory setting 3 mm gap, pivot point 1.5 mm off centre)
Installation: For screw fixing
Installation note: Plan number and position of folding door hinges in accordance with the number and position of the door hingesProvide spacer with gap > 0 mm
Order reference: Order Hospa Ø 4.0 mm countersunk screws separately
| Adjustment facility | Side adjustment 0/+5 mm, Height adjustment ±1 mm, Adjustable gap 0–10 mm (factory setting 3 mm gap, pivot point 1.5 mm off centre) |
| Area of application | For folding doors |
| Cup drilling Ø | 35 mm |
| Cup fixing | For screw fixing |
| Door processing for assembly | Processing not required |
| For door material | Wood |
| Installation note | Plan number and position of folding door hinges in accordance with the number and position of the door hingesProvide spacer with gap > 0 mm |
| Order reference | Order Hospa Ø 4.0 mm countersunk screws separately |
| Version | With spring: Extending and folding spring force stabilised, With adjustable pivot offset |
| Material | Zinc alloy |
| Colour/Finish | Cup: nickel plated, Hinge arm: zinc plated |
| Opening angle | 180° |
| Installation | For screw fixing |
| For door thickness | ≥13 mm |
| For door width | ≤600 mm |
| Cup drilling depth | 9 mm |
