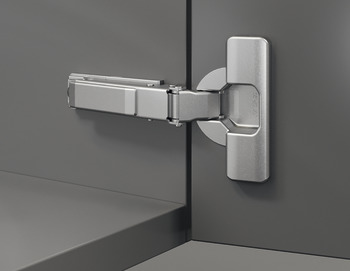

110D Concealed Hinge FO SF NP - Steel Nickel Plated
Product Code: 329.17.600
110D Concealed Hinge FO SF NP - Steel Nickel Plated
Product Code: 329.17.600
119 In stock
£2.09
Ex. VAT: £1.74
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 9 | £2.09 | — |
| 10 – 24 | £1.98 | Save 5% |
| 25 – 49 | £1.88 | Save 10% |
| 50+ | £1.67 | Save 20% |
- Products Description
- Technical Specifications
- Dimensions
Area of application: For standard applications
Function: With automatic closing spring, Without soft closing mechanism
Concealed hinge version: Full overlay
Crank type: Straight
For door material: Wood
Door processing for assembly: With cup drilling
Material: Steel
Colour/finish: nickel plated
Opening angle: 110°

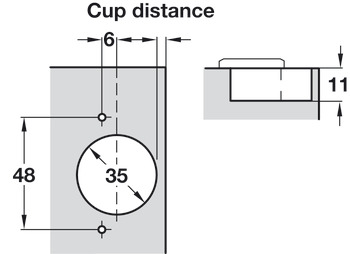

Cup drilling depth: 11 mm
Cup fixing: For screw fixing

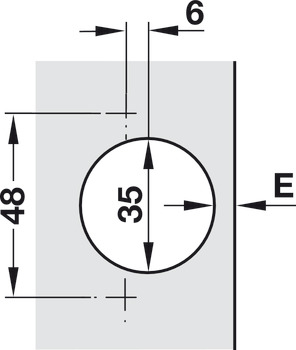

Drilling pattern: 48/6
Adjustment facility: Side adjustment -1.5/+4.5 mm, Height adjustment ±2 mm, depth adjustment with Metalla 510 A mounting plates +2.8 mm, with Metalla 510 SM mounting plates from -0.5/+2.8 mm
Installation: Door on cabinet with slide-on system A or quick fixing system SM
Order reference: Mounting plate to be ordered separately
Function: With automatic closing spring, Without soft closing mechanism
Concealed hinge version: Full overlay
Crank type: Straight
For door material: Wood
Door processing for assembly: With cup drilling
Material: Steel
Colour/finish: nickel plated
Opening angle: 110°
Cup drilling depth: 11 mm
Cup fixing: For screw fixing
Drilling pattern: 48/6
Adjustment facility: Side adjustment -1.5/+4.5 mm, Height adjustment ±2 mm, depth adjustment with Metalla 510 A mounting plates +2.8 mm, with Metalla 510 SM mounting plates from -0.5/+2.8 mm
Installation: Door on cabinet with slide-on system A or quick fixing system SM
Order reference: Mounting plate to be ordered separately
| Adjustment facility | Side adjustment -1.5/+4.5 mm, Height adjustment ±2 mm, depth adjustment with Metalla 510 A mounting plates +2.8 mm, with Metalla 510 SM mounting plates from -0.5/+2.8 mm |
| Area of application | For standard applications |
| Concealed hinge version | Full overlay |
| Crank type | Straight |
| Cup fixing | For screw fixing |
| Door processing for assembly | With cup drilling |
| For door material | Wood |
| Function | With automatic closing spring, Without soft closing mechanism |
| Order reference | Mounting plate to be ordered separately |
| Material | Steel |
| Colour/Finish | nickel plated |
| Opening angle | 110° |
| Installation | Door on cabinet with slide-on system A or quick fixing system SM |
| Drilling pattern | 48/6 |
| Cup drilling depth | 11 mm |
