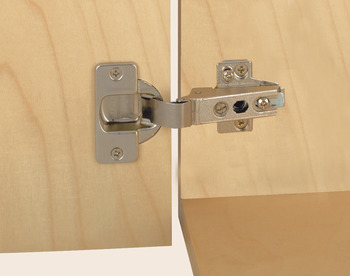

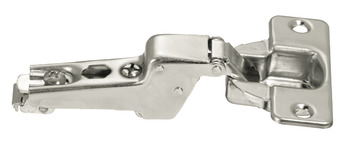

95D Hinge Clk 40 48/9 FO Sprung SF - Cup: Steel, Hinge Arm: Zinc Alloy Nickel Plated
Product Code: 322.13.631
95D Hinge Clk 40 48/9 FO Sprung SF - Cup: Steel, Hinge Arm: Zinc Alloy Nickel Plated
Product Code: 322.13.631
56 In stock
£8.22
Ex. VAT: £6.85
This product is part of a range with 2 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 9 | £8.22 | — |
| 10 – 29 | £7.81 | Save 5% |
| 30 – 49 | £7.40 | Save 10% |
| 50+ | £6.58 | Save 20% |
- Products Description
- Technical Specifications
- Dimensions
Article details
For standard applicationsThe ⌀ 40 cup makes this an excellent choice for doors up to 36 mm thickness.
Area of applicationFor standard applications
Crank typeHigh Cranked
Door processing for assemblywith cup drilling
Cup drilling Ø40 mm
Cup fixingfor screw fixing
Order reference
Order Hospa ⌀ 3.5 mm raised head countersunk screws separately
For standard applicationsThe ⌀ 40 cup makes this an excellent choice for doors up to 36 mm thickness.
Area of applicationFor standard applications
Crank typeHigh Cranked
Door processing for assemblywith cup drilling
Cup drilling Ø40 mm
Cup fixingfor screw fixing
Order reference
Order Hospa ⌀ 3.5 mm raised head countersunk screws separately
| Material | Cup: Steel, Hinge arm: Zinc alloy |
| Colour/Finish | nickel plated |
| Opening angle | 95° |
| Drilling pattern | 48/9 |
| Cup drilling depth | 13.2 mm |
