Nexis 95/45D Hinge Clk Sprung Hos - Cup: Steel, Hinge Arm: Zinc Alloy Nickel Plated
Product Code: 322.29.531
Nexis 95/45D Hinge Clk Sprung Hos - Cup: Steel, Hinge Arm: Zinc Alloy Nickel Plated
Product Code: 322.29.531
855 In stock
£10.24
Ex. VAT: £8.53
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 9 | £10.24 | — |
| 10 – 29 | £9.72 | Save 5% |
| 30 – 49 | £9.20 | Save 10% |
| 50+ | £8.18 | Save 20% |
Required to complete this product
These items must be ordered separately.
- Products Description
- Technical Specifications
- Dimensions

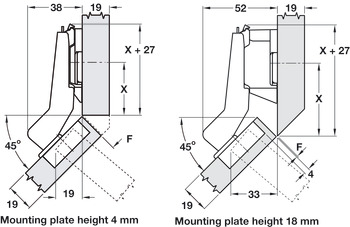

Area of application: For 45° angled applications
Version: Click on
Function: With spring
Concealed hinge version: Angled application
Crank type: High Cranked
Door processing for assembly: With cup drilling
Material: Cup: Steel, Hinge arm: Zinc alloy
Colour/finish: nickel plated
Opening angle: 95°

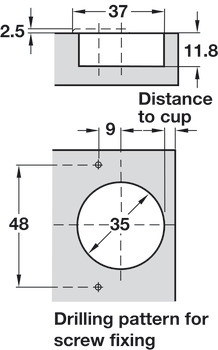

Cup drilling depth: 11.80 mm
Cup drilling Ø: 35 mm
Cup fixing: For screw fixing
Drilling pattern: 48/9
Order reference: Wide range of mounting plates available, please order separatelyOrder Hospa ⌀ 3.5 mm countersunk screws separately
Version: Click on
Function: With spring
Concealed hinge version: Angled application
Crank type: High Cranked
Door processing for assembly: With cup drilling
Material: Cup: Steel, Hinge arm: Zinc alloy
Colour/finish: nickel plated
Opening angle: 95°
Cup drilling depth: 11.80 mm
Cup drilling Ø: 35 mm
Cup fixing: For screw fixing
Drilling pattern: 48/9
Order reference: Wide range of mounting plates available, please order separatelyOrder Hospa ⌀ 3.5 mm countersunk screws separately
| Area of application | For 45° angled applications |
| Concealed hinge version | Angled application |
| Crank type | High Cranked |
| Cup drilling Ø | 35 mm |
| Cup fixing | For screw fixing |
| Door processing for assembly | With cup drilling |
| Function | With spring |
| Order reference | Wide range of mounting plates available, please order separatelyOrder Hospa ⌀ 3.5 mm countersunk screws separately |
| Version | Click on |
| Material | Cup: Steel, Hinge arm: Zinc alloy |
| Colour/Finish | nickel plated |
| Opening angle | 95° |
| Drilling pattern | 48/9 |
| Cup drilling depth | 11.80 mm |
