Nexis 95D Hinge Clk FO Sprung Hos - Steel Nickel Plated
Product Code: 322.11.530
Nexis 95D Hinge Clk FO Sprung Hos - Steel Nickel Plated
Product Code: 322.11.530
2,114 In stock
£5.53
Ex. VAT: £4.61
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 9 | £5.53 | — |
| 10 – 29 | £5.26 | Save 5% |
| 30 – 49 | £4.98 | Save 10% |
| 50+ | £4.43 | Save 20% |
Required to complete this product
These items must be ordered separately.
- Products Description
- Technical Specifications

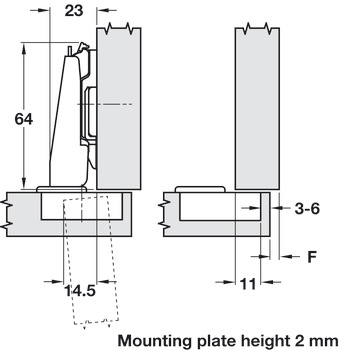

- Dimensions
Area of application: For standard applications
Version: Click on
Concealed hinge version: Full overlay
Crank type: Straight
Door processing for assembly: With cup drilling
Material: Steel
Colour/finish: nickel plated
Opening angle: 95°
Cup drilling depth: 11.80 mm
Cup drilling Ø: 35 mm
Cup fixing: For screw fixing

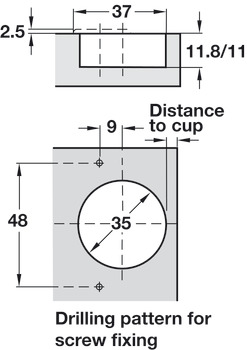

Drilling pattern: 48/9
Order reference: Wider range of mounting plates available, please order separatelyOrder Hospa ⌀ 3.5 mm raised head countersunk screws separately
Version: Click on
Concealed hinge version: Full overlay
Crank type: Straight
Door processing for assembly: With cup drilling
Material: Steel
Colour/finish: nickel plated
Opening angle: 95°
Cup drilling depth: 11.80 mm
Cup drilling Ø: 35 mm
Cup fixing: For screw fixing
Drilling pattern: 48/9
Order reference: Wider range of mounting plates available, please order separatelyOrder Hospa ⌀ 3.5 mm raised head countersunk screws separately
| Area of application | For standard applications |
| Concealed hinge version | Full overlay |
| Crank type | Straight |
| Cup drilling Ø | 35 mm |
| Cup fixing | For screw fixing |
| Door processing for assembly | With cup drilling |
| Order reference | Wider range of mounting plates available, please order separatelyOrder Hospa ⌀ 3.5 mm raised head countersunk screws separately |
| Version | Click on |
| Material | Steel |
| Colour/Finish | nickel plated |
| Opening angle | 95° |
| Drilling pattern | 48/9 |
| Cup drilling depth | 11.80 mm |
