Hafele 270D Hinge FO Keyhole Hos - Zinc Alloy
Product Code: 312.50.600
Hafele 270D Hinge FO Keyhole Hos - Zinc Alloy
Product Code: 312.50.600
4,578 In stock
£4.13
Ex. VAT: £3.44
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 9 | £4.13 | — |
| 10 – 49 | £3.91 | Save 5% |
| 50 – 99 | £3.71 | Save 10% |
| 100+ | £3.30 | Save 20% |
Required to complete this product
These items must be ordered separately.
- Products Description
- Technical Specifications
- Dimensions
Area of application: For standard applications
Concealed hinge version: Full overlay
Crank type: Straight
Door processing for assembly: With cup drilling
Material: Zinc alloy
Opening angle: 270°

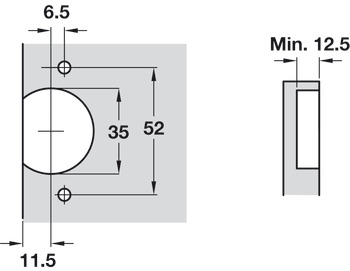

Cup drilling depth: 12.50 mm
Cup drilling Ø: 35 mm
Cup fixing: For screw fixing
Drilling pattern: 52/6.5

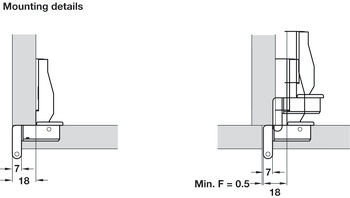

Installation: Keyhole fixing hinge arm
Hafele Lifetime Guarantee: 25 years
Order reference: Order Hospa ⌀ 3.5 mm countersunk screws separatelyKeyhole mounting plate required
Warranty/Guarantee information: This product is covered by the Häfele Lifetime Guarantee
Concealed hinge version: Full overlay
Crank type: Straight
Door processing for assembly: With cup drilling
Material: Zinc alloy
Opening angle: 270°
Cup drilling depth: 12.50 mm
Cup drilling Ø: 35 mm
Cup fixing: For screw fixing
Drilling pattern: 52/6.5
Installation: Keyhole fixing hinge arm
Hafele Lifetime Guarantee: 25 years
Order reference: Order Hospa ⌀ 3.5 mm countersunk screws separatelyKeyhole mounting plate required
Warranty/Guarantee information: This product is covered by the Häfele Lifetime Guarantee
| Area of application | For standard applications |
| Concealed hinge version | Full overlay |
| Crank type | Straight |
| Cup drilling Ø | 35 mm |
| Cup fixing | For screw fixing |
| Door processing for assembly | With cup drilling |
| Hafele Lifetime Guarantee | 25 years |
| Order reference | Order Hospa ⌀ 3.5 mm countersunk screws separatelyKeyhole mounting plate required |
| Warranty/Guarantee information | This product is covered by the Häfele Lifetime Guarantee |
| Material | Zinc alloy |
| Opening angle | 270° |
| Installation | Keyhole fixing hinge arm |
| Drilling pattern | 52/6.5 |
| Cup drilling depth | 12.50 mm |
