Tiomos 95D Hinge Clk INS SF w SC Night - Cup: Steel, Hinge Arm: Zinc Alloy
Product Code: 348.42.809
Tiomos 95D Hinge Clk INS SF w SC Night - Cup: Steel, Hinge Arm: Zinc Alloy
Product Code: 348.42.809
165 In stock
£8.88
Ex. VAT: £7.40
This product is part of a range with 2 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 4 | £8.88 | — |
| 5 – 9 | £8.44 | Save 5% |
| 10 – 24 | £7.99 | Save 10% |
| 25+ | £7.10 | Save 20% |
- Products Description
- Technical Specifications
- Dimensions
Article details
For standard application⌀ 35 mm cup
Up to 28 mm door thickness (for door thicknesses 29 mm and above, a trial fitting is recommended)
Area of applicationFor standard application
VersionWith soft closing mechanism
Concealed hinge versionInset
Crank typeHigh Cranked
Door processing for assemblywith cup drilling
Cup drilling Ø35 mm
Cup fixingfor screw fixing
Order reference

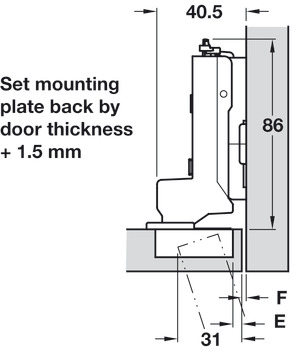

Order mounting plate and Hospa ⌀ 3.5 mm countersunk screws separately
For standard application⌀ 35 mm cup
Up to 28 mm door thickness (for door thicknesses 29 mm and above, a trial fitting is recommended)
Area of applicationFor standard application
VersionWith soft closing mechanism
Concealed hinge versionInset
Crank typeHigh Cranked
Door processing for assemblywith cup drilling
Cup drilling Ø35 mm
Cup fixingfor screw fixing
Order reference
Order mounting plate and Hospa ⌀ 3.5 mm countersunk screws separately
| Material | Cup: Steel, Hinge arm: Zinc alloy |
| Opening angle | 95° |

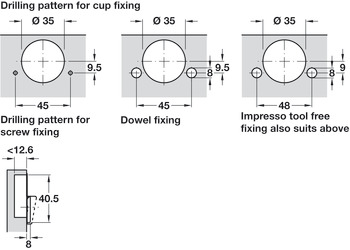

| Drilling pattern | 45/9.5 |
| Cup drilling depth | 12.6 mm |
