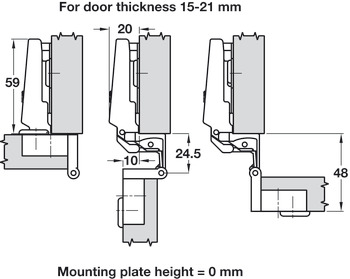

Nexis 270D Hinge ExAxle 35 Sld 15-21mm - Zinc Alloy Nickel Plated
Product Code: 323.31.600
Nexis 270D Hinge ExAxle 35 Sld 15-21mm - Zinc Alloy Nickel Plated
Product Code: 323.31.600
164 In stock
£10.18
Ex. VAT: £8.48
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 9 | £10.18 | — |
| 10 – 29 | £9.66 | Save 5% |
| 30 – 49 | £9.16 | Save 10% |
| 50+ | £8.14 | Save 20% |
- Products Description
- Technical Specifications
- Dimensions
Version: With catch
Concealed hinge version: Full overlay
Crank type: Cranked
Door processing for assembly: With cup drilling
Material: Zinc alloy
Colour/finish: nickel plated
Opening angle: 270°
Cup drilling depth: 13 mm

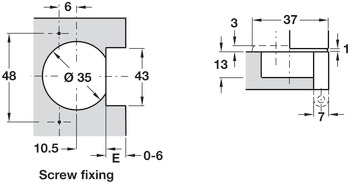

Cup drilling Ø: 35 mm
Cup fixing: For screw fixing
Drilling pattern: 43/6
Order reference: Wider range of mounting plates available, please order separatelyOrder Hospa ⌀ 3.5 mm raised head countersunk screws separately
Concealed hinge version: Full overlay
Crank type: Cranked
Door processing for assembly: With cup drilling
Material: Zinc alloy
Colour/finish: nickel plated
Opening angle: 270°
Cup drilling depth: 13 mm
Cup drilling Ø: 35 mm
Cup fixing: For screw fixing
Drilling pattern: 43/6
Order reference: Wider range of mounting plates available, please order separatelyOrder Hospa ⌀ 3.5 mm raised head countersunk screws separately
| Concealed hinge version | Full overlay |
| Crank type | Cranked |
| Cup drilling Ø | 35 mm |
| Cup fixing | For screw fixing |
| Door processing for assembly | With cup drilling |
| Order reference | Wider range of mounting plates available, please order separatelyOrder Hospa ⌀ 3.5 mm raised head countersunk screws separately |
| Version | With catch |
| Material | Zinc alloy |
| Colour/Finish | nickel plated |
| Opening angle | 270° |
| Drilling pattern | 43/6 |
| Cup drilling depth | 13 mm |
