Nexis 95D Post Hinge Clk Sprung Hos - Cup: Steel, Hinge Arm: Zinc Alloy Nickel Plated
Product Code: 322.27.530
Nexis 95D Post Hinge Clk Sprung Hos - Cup: Steel, Hinge Arm: Zinc Alloy Nickel Plated
Product Code: 322.27.530
15,986 In stock
£9.56
Ex. VAT: £7.97
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 9 | £9.56 | — |
| 10 – 29 | £9.08 | Save 5% |
| 30 – 49 | £8.60 | Save 10% |
| 50+ | £7.64 | Save 20% |
Required to complete this product
These items must be ordered separately.
- Products Description
- Technical Specifications
- Dimensions
Article details

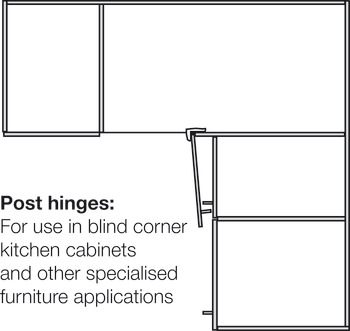

For use in blind corner kitchen cabinets and other specialised furniture applications⌀ 35 mm cup
Soft-close compatible
Area of applicationFor use in blind corner kitchen cabinets and other specialised furniture applications
Concealed hinge versionBlind corner application
Crank typeStraight
Door processing for assemblywith cup drilling

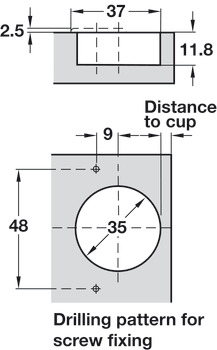

Cup drilling Ø35 mm
Cup fixingfor screw fixing
Order reference
Wider range of mounting plates available, please order separatelyOrder Hospa ⌀ 3.5 mm raised head countersunk screws separately
For use in blind corner kitchen cabinets and other specialised furniture applications⌀ 35 mm cup
Soft-close compatible
Area of applicationFor use in blind corner kitchen cabinets and other specialised furniture applications
Concealed hinge versionBlind corner application
Crank typeStraight
Door processing for assemblywith cup drilling
Cup drilling Ø35 mm
Cup fixingfor screw fixing
Order reference
Wider range of mounting plates available, please order separatelyOrder Hospa ⌀ 3.5 mm raised head countersunk screws separately
| Material | Cup: Steel, Hinge arm: Zinc alloy |
| Colour/Finish | nickel plated |
| Opening angle | 95° |
| Drilling pattern | 48/9 |
| Cup drilling depth | 11.8 mm |
