Tiomos 95D Hinge Clk HO SF w SC NP - Cup: Steel, Hinge Arm: Zinc Alloy
Product Code: 348.42.802
Tiomos 95D Hinge Clk HO SF w SC NP - Cup: Steel, Hinge Arm: Zinc Alloy
Product Code: 348.42.802
400 In stock
£8.33
Ex. VAT: £6.94
This product is part of a range with 2 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 4 | £8.33 | — |
| 5 – 9 | £7.91 | Save 5% |
| 10 – 24 | £7.50 | Save 10% |
| 25+ | £6.66 | Save 20% |
- Products Description
- Technical Specifications

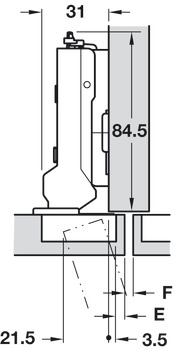

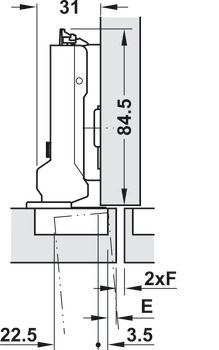

- Dimensions
Area of application: For standard application
Function: With soft closing mechanism
Concealed hinge version: Half overlay
Crank type: Cranked
Door processing for assembly: With cup drilling
Material: Cup: Steel, Hinge arm: Zinc alloy
Opening angle: 95°
Cup drilling depth: 12.60 mm
Cup drilling Ø: 35 mm
Cup fixing: For screw fixing
Drilling pattern: 45/9.5
Order reference: Order mounting plate and Hospa ⌀ 3.5 mm countersunk screws separatelyImage shows with hinge cover cap not included, to be ordered separately
Function: With soft closing mechanism
Concealed hinge version: Half overlay
Crank type: Cranked
Door processing for assembly: With cup drilling
Material: Cup: Steel, Hinge arm: Zinc alloy
Opening angle: 95°
Cup drilling depth: 12.60 mm
Cup drilling Ø: 35 mm
Cup fixing: For screw fixing
Drilling pattern: 45/9.5
Order reference: Order mounting plate and Hospa ⌀ 3.5 mm countersunk screws separatelyImage shows with hinge cover cap not included, to be ordered separately
| Area of application | For standard application |
| Concealed hinge version | Half overlay |
| Crank type | Cranked |
| Cup drilling Ø | 35 mm |
| Cup fixing | For screw fixing |
| Door processing for assembly | With cup drilling |
| Function | With soft closing mechanism |
| Order reference | Order mounting plate and Hospa ⌀ 3.5 mm countersunk screws separatelyImage shows with hinge cover cap not included, to be ordered separately |
| Material | Cup: Steel, Hinge arm: Zinc alloy |
| Opening angle | 95° |
| Drilling pattern | 45/9.5 |
| Cup drilling depth | 12.60 mm |
