Tiomos M9 110D Hinge w Damper NP 348.30.840

Tiomos M9 110D Hinge w Damper NP

Product Code: 348.30.840

Tiomos M9 110D Hinge w Damper NP

Product Code: 348.30.840
Download Brochure
Browse more Concealed Hinges
1,169 In stock
£14.44
Ex. VAT: £12.03
This product is part of a range with 5 options. Select an option to filter, then choose the matching variant.
QuantityUnit Price (inc. VAT)You Save
1 – 4£14.44—
5 – 9£13.72Save 5%
10 – 24£13.00Save 10%
25+£11.56Save 20%
Buy 25+ and save 20%
Order before 3pm for next-day dispatch
  • Products Description
  • Technical Specifications
  • Dimensions
Article details
Ideal for thin doors or four-sided mitred applications 110°⌀ 35 mm cupApplication examples:Thin furniture doorsFour-sided mitred applications 110°
For door overlays up to 25 mm
Area of applicationApplication examples:Thin furniture doorsFour-sided mitred applications 110°

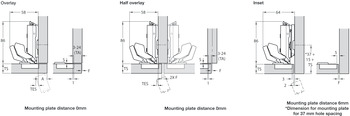

Concealed hinge versionFull overlay
Crank typeHigh Cranked
Door processing for assemblywith cup drilling

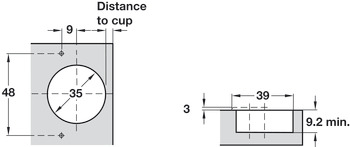

Cup drilling Ø35 mm
Order reference
Wider range of mounting plates and opening angle restraint available, please order separatelyOrder Hospa ⌀ 3.5 mm countersunk screws separately
Additional information attributes
Trail fitting is recommended for all door thicknessesPlease see cat. page for additional technical information
Opening angle 110°
Cup drilling depth 9.2 mm
