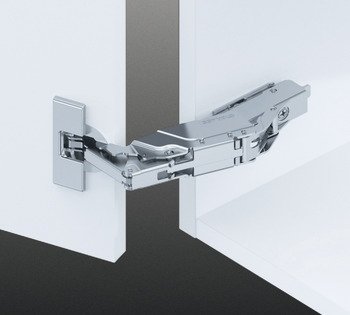

Tiomos 155D Hinge/Plt Set Clk 3prt Eur - Zinc Alloy
Product Code: 348.32.822
Tiomos 155D Hinge/Plt Set Clk 3prt Eur - Zinc Alloy
Product Code: 348.32.822
2,257 In stock
£6.83
Ex. VAT: £5.69
Sold in packs of 50 — £341.58 per pack
- Products Description
- Technical Specifications

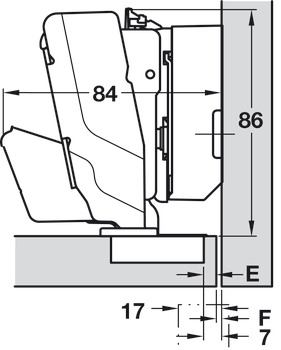

- Dimensions
Article details
For standard applications
Up to 32 mm door thickness (for door thicknesses 29 mm and above, a trial fitting is recommended)
Area of applicationFor standard applications
VersionWith soft closing mechanism
Concealed hinge versionFull overlay
Door processing for assemblywith cup drilling
Order reference
Order Hospa Ø 3.5 mm countersunk screws separately
Additional information attributes

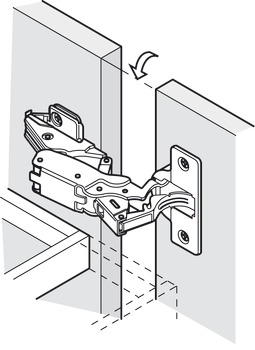

Can also be used for inset mounting if 19 or 21 mm mounting plates are used. Set mounting plate back by door thickness +1.5mm
For standard applications
Up to 32 mm door thickness (for door thicknesses 29 mm and above, a trial fitting is recommended)
Area of applicationFor standard applications
VersionWith soft closing mechanism
Concealed hinge versionFull overlay
Door processing for assemblywith cup drilling
Order reference
Order Hospa Ø 3.5 mm countersunk screws separately
Additional information attributes
Can also be used for inset mounting if 19 or 21 mm mounting plates are used. Set mounting plate back by door thickness +1.5mm
| Material | Zinc alloy |
| Opening angle | 160° |

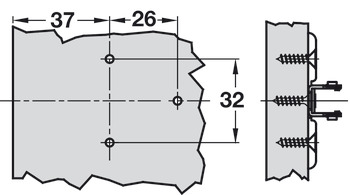

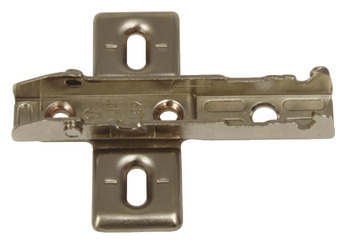

| Supplied with | 1x 160º Tiomos hinge (348.32.801)1x Mounting plate - choice of three:ECON Cruciform mounting plate, 3 point fixing- Hospa screw fixing - One part plate with ± 2 mm height adjustment by slot- Nickel-plated steelECON Cruciform mounting plate, 3 point fixing- Wth pre-mounted Euro screws- One part plate with ± 2 mm height adjustment by slot- Nickel-plated steelCruciform mounting plate, 4 point fixing- For TIOMOS Click on fixing hinges only- Hospa screw fixing- Two part plate with ± 2 mm height adjustment via worm screw- Nickel-plated steel |
| Drilling pattern | 42/11 |
| Cup drilling depth | 10 mm |
