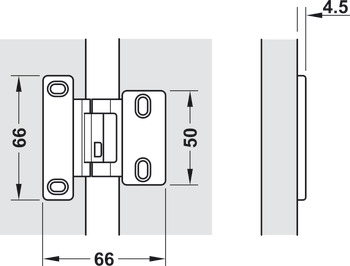

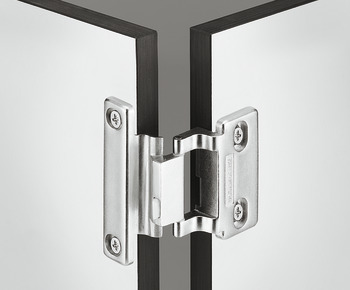

240D Hinge 10-13mm Drs HO SF 304 Stainless Steel
Product Code: 344.75.051
240D Hinge 10-13mm Drs HO SF 304 Stainless Steel
Product Code: 344.75.051
74 In stock
£79.45
Ex. VAT: £66.21
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 1 | £79.45 | — |
| 2 – 4 | £75.48 | Save 5% |
| 5 – 9 | £71.51 | Save 10% |
| 10+ | £63.56 | Save 20% |
- Products Description
- Technical Specifications
Article details
For cabinet thickness 13 mm
Side adjustment –1 mmHeight adjustment ± 2 mm
Area of application
For laminate (HPL) doors, 6 mm gap
Version
Half overlay mounting
Door offset
0 mm at 140° opening angle
Door overlay
3.5 mm
Flange shape
rounded
Gap
6 mm
For door thickness
≥ 10 – ≤ 13 mm
Order reference

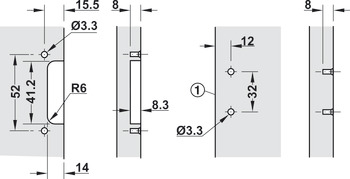

Order Hospa Ø 3.5 mm countersunk screws separately
Additional information attributes
The suitability of the stainless steel that is used for the intended application area must be assured by separate testing from case to case.
For cabinet thickness 13 mm
Side adjustment –1 mmHeight adjustment ± 2 mm
Area of application
For laminate (HPL) doors, 6 mm gap
Version
Half overlay mounting
Door offset
0 mm at 140° opening angle
Door overlay
3.5 mm
Flange shape
rounded
Gap
6 mm
For door thickness
≥ 10 – ≤ 13 mm
Order reference
Order Hospa Ø 3.5 mm countersunk screws separately
Additional information attributes
The suitability of the stainless steel that is used for the intended application area must be assured by separate testing from case to case.
| Supplied with | 1 hinge1 set of fixing material |
| Installation | For screw fixing |
