110D Simplex Glass Door Hinge Steel/Chrome Plt - Steel, Socket: Plastic
Product Code: 361.42.202
110D Simplex Glass Door Hinge Steel/Chrome Plt - Steel, Socket: Plastic
Product Code: 361.42.202
60 In stock
£1.78
Ex. VAT: £1.48
This product is part of a range with 2 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 19 | £1.78 | — |
| 20 – 49 | £1.69 | Save 5% |
| 50 – 99 | £1.60 | Save 10% |
| 100+ | £1.43 | Save 20% |
- Products Description
- Technical Specifications
Article details
With press fit bushWithout catch
2 hinges (1 pair) per door required
Furniture Constructionfor glass/wood constructions
For glass thickness≤4.7 mm
For door materialWood, Glass
Door constructionInset
Area of application
For inset glass doors
Door width max.
400 mm
Door height max.
600 mm
Equipped with
with socket, Without catch
Configuration required
Additional information attributes

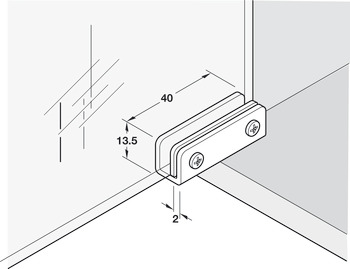

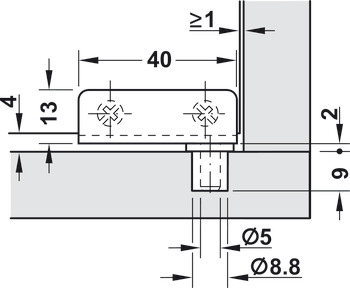

surrounding gap of 4 mm from top and bottom and minimum 1 mm on the sides should be taken into consideration
With press fit bushWithout catch
2 hinges (1 pair) per door required
Furniture Constructionfor glass/wood constructions
For glass thickness≤4.7 mm
For door materialWood, Glass
Door constructionInset
Area of application
For inset glass doors
Door width max.
400 mm
Door height max.
600 mm
Equipped with
with socket, Without catch
Configuration required
Additional information attributes
surrounding gap of 4 mm from top and bottom and minimum 1 mm on the sides should be taken into consideration
| Material | Steel, Socket: Plastic |
| Opening angle | 110° |
| Installation | For inserting into base panelFor clamping to glass door with screw |
