170D Glass Door Middle Hinge PCP
Product Code: 361.93.242
170D Glass Door Middle Hinge PCP
Product Code: 361.93.242
220 In stock
£13.69
Ex. VAT: £11.41
This product is part of a range with 2 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 1 | £13.69 | — |
| 2 – 4 | £12.97 | Save 5% |
| 5+ | £11.53 | Save 16% |
- Products Description
- Technical Specifications

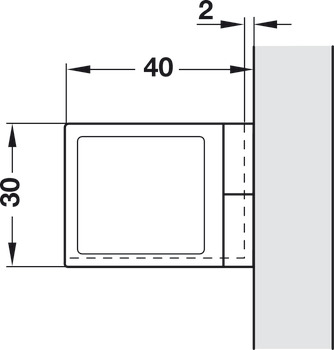

- Dimensions
Area of application
For inset glass doors
Door width max.
450 mm
Door height max.
600 mm
Adjustment facility
Equipped with
with catch
Configuration required
For inset glass doors
Door width max.
450 mm
Door height max.
600 mm
Adjustment facility
Equipped with
with catch
Configuration required
| Supplied with | Comprising:2x hinges, (1x right hand, 1x left hand)2x rubber pads mounted top and bottom |

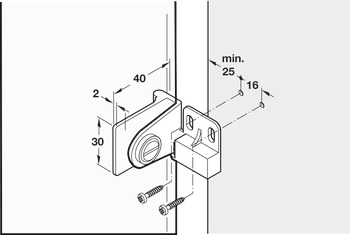

| Installation | For screw fixing to side panelFor clamping to glass door |
| Height | and depth adjustment |
