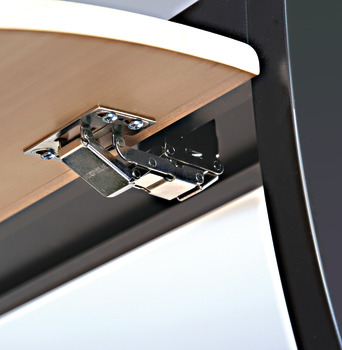

Swing Up 90D Hinge for Mnt w Panel wo SC - Steel Nickel Plated

Article details
Automatic closing and opening mechanism

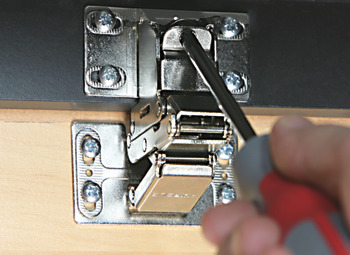

For flap height max. 340 mmFor flap width max. 800 mmSide and depth adjustment via slotsHolding power adjustable with adjusting screw (with hinge for blind corner mounting)
Area of applicationFor lightweight flaps
For door materialWood
For lid thickness15 – 16 mm
For lid width≤ 800 mm
For lid height≤ 340 mm
For lid weight≤ 2.1 kg

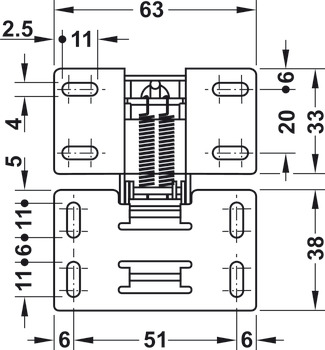

Adjustment facilityheight, side
For lid weight max.
2.1 kg
Order reference
Minimum of 2 required per flapOrder Hospa Ø 4.0 mm pan head screws separately
Additional information attributes
The pull is adjustable in accordance with the flap weight; different hinge types for different flap weights are therefore not requiredMinimum of 2 required per flap
