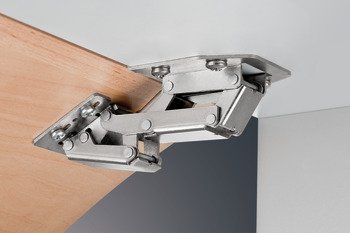

Swing Up 90D Hinge SF wo SC Overlay Mnt - Steel Nickel Plated

Article details
Automatic closing and opening mechanism
Pull adjustable via adjusting screw (with hinge for face frame mounting)Side adjustment via slotsHeight adjustment via slots, (CH 600, CH 300, CH 150) or adjusting screw (CH 350)
Area of applicationFor lightweight flaps
For door materialWood
For lid thickness15 – 16 mm
For lid width≤ 800 mm
For lid height≤ 340 mm
For lid weight≤ 2.1 kg
Adjustment facilityheight, side
For lid weight max.
2.1 kg
Order reference
Order Hospa Ø 4.0 mm pan head screws separately
Additional information attributes
The pull is adjustable in accordance with the flap weight; different hinge types for different flap weights are therefore not requiredMinimum of 2 required per flap
