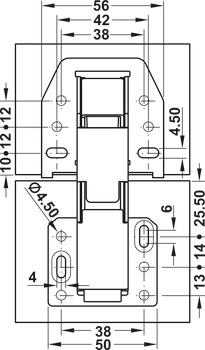

Swing Up 90D Hinge SF w SC Overlay Mnt - Steel Nickel Plated
Product Code: 356.36.607
Swing Up 90D Hinge SF w SC Overlay Mnt - Steel Nickel Plated
Product Code: 356.36.607
2,979 In stock
£4.28
Ex. VAT: £3.57
This product is part of a range with 2 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 9 | £4.28 | — |
| 10 – 29 | £4.07 | Save 5% |
| 30 – 49 | £3.85 | Save 10% |
| 50+ | £3.42 | Save 20% |
- Products Description
- Technical Specifications
Article details
Automatic closing and opening mechanism
Pull adjustable via adjusting screw (with hinge for face frame mounting)Side adjustment via slotsHeight adjustment via slots, (CH 600, CH 300, CH 150) or adjusting screw (CH 350)
Area of applicationFor lightweight flaps
For door materialWood
For lid thickness15 – 16 mm
For lid width≤ 800 mm
For lid height≤ 340 mm
For lid weight≤ 2.1 kg
Adjustment facilityheight, side
For lid weight max.
2.1 kg
Order reference
Order Hospa Ø 4.0 mm pan head screws separately
Additional information attributes
The pull is adjustable in accordance with the flap weight; different hinge types for different flap weights are therefore not requiredMinimum of 2 required per flap
Automatic closing and opening mechanism
Pull adjustable via adjusting screw (with hinge for face frame mounting)Side adjustment via slotsHeight adjustment via slots, (CH 600, CH 300, CH 150) or adjusting screw (CH 350)
Area of applicationFor lightweight flaps
For door materialWood
For lid thickness15 – 16 mm
For lid width≤ 800 mm
For lid height≤ 340 mm
For lid weight≤ 2.1 kg
Adjustment facilityheight, side
For lid weight max.
2.1 kg
Order reference
Order Hospa Ø 4.0 mm pan head screws separately
Additional information attributes
The pull is adjustable in accordance with the flap weight; different hinge types for different flap weights are therefore not requiredMinimum of 2 required per flap
| Material | Steel |
| Colour/Finish | nickel plated |

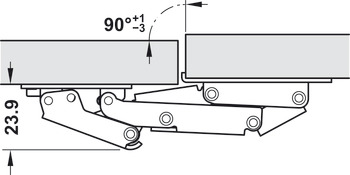

| Opening angle | 90° |
| Installation | for screw fixing |
