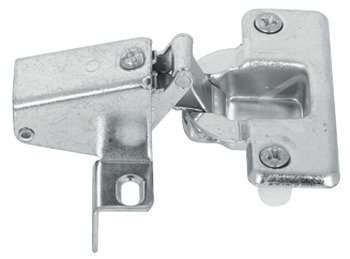

Swing Up 90D Hinge SF Cup Galvanised Steel Zinc Plated
Product Code: 356.35.815
Swing Up 90D Hinge SF Cup Galvanised Steel Zinc Plated
Product Code: 356.35.815
5 In stock
£3.06
Ex. VAT: £2.55
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 39 | £3.06 | — |
| 40 – 99 | £2.90 | Save 5% |
| 100 – 199 | £2.75 | Save 10% |
| 200+ | £2.45 | Save 20% |
- Products Description
- Technical Specifications
- Dimensions
Area of application: For straight flaps
Version: Minimum of 2 required per flap
Function: With automatic closing spring
For door material: Wood
Material: Steel
Colour/finish: zinc plated
Opening angle: 95°
For lid thickness: 12 – 22 mm
For lid width: ≤ 450 mm
For lid height: ≤315 mm

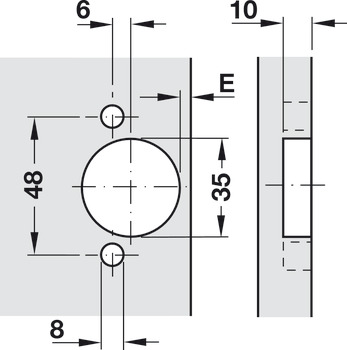

Cup drilling depth: 10 mm
Cup fixing: For screw fixing

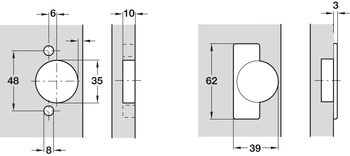

Drilling pattern: 48/6
Adjustment facility: Height adjusting screw, side and depth adjustment via slots

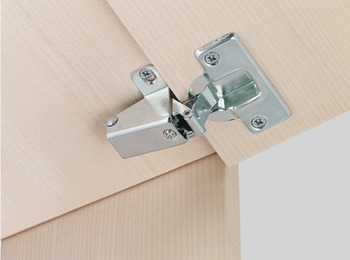

Installation: Flap for screw fixing to cabinet

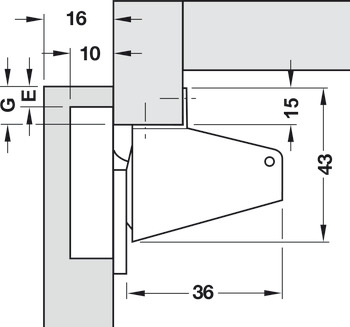

Installation note: Example calculation of flap overlay:Overlay G = 4 mm + distance to cup E (4 mm) = 8 mm
For lid weight: ≤1.5 kg
Order reference: Order Hospa Ø 4.5 mm countersunk screws separately
Version: Minimum of 2 required per flap
Function: With automatic closing spring
For door material: Wood
Material: Steel
Colour/finish: zinc plated
Opening angle: 95°
For lid thickness: 12 – 22 mm
For lid width: ≤ 450 mm
For lid height: ≤315 mm
Cup drilling depth: 10 mm
Cup fixing: For screw fixing
Drilling pattern: 48/6
Adjustment facility: Height adjusting screw, side and depth adjustment via slots
Installation: Flap for screw fixing to cabinet
Installation note: Example calculation of flap overlay:Overlay G = 4 mm + distance to cup E (4 mm) = 8 mm
For lid weight: ≤1.5 kg
Order reference: Order Hospa Ø 4.5 mm countersunk screws separately
| Adjustment facility | Height adjusting screw, side and depth adjustment via slots |
| Area of application | For straight flaps |
| Cup fixing | For screw fixing |
| For door material | Wood |
| For lid weight | ≤1.5 kg |
| Function | With automatic closing spring |
| Installation note | Example calculation of flap overlay:Overlay G = 4 mm + distance to cup E (4 mm) = 8 mm |
| Order reference | Order Hospa Ø 4.5 mm countersunk screws separately |
| Version | Minimum of 2 required per flap |
| Material | Steel |
| Colour/Finish | zinc plated |
| Opening angle | 95° |
| Installation | Flap for screw fixing to cabinet |
| Drilling pattern | 48/6 |
| For lid height | ≤315 mm |
| For lid thickness | 12 – 22 mm |
| For lid width | ≤ 450 mm |
| Cup drilling depth | 10 mm |
