Heavy Duty DIN Euro Sashlock - 90mm Case - 60mm Backset - Radius - Satin Stainless - Mild Steel
Product Code: 417065P
Heavy Duty DIN Euro Sashlock - 90mm Case - 60mm Backset - Radius - Satin Stainless - Mild Steel
Product Code: 417065P
261 In stock
£25.63
Ex. VAT: £21.36
This product is part of a range with 2 options. Select an option to filter, then choose the matching variant.
- Products Description
- Technical Specifications

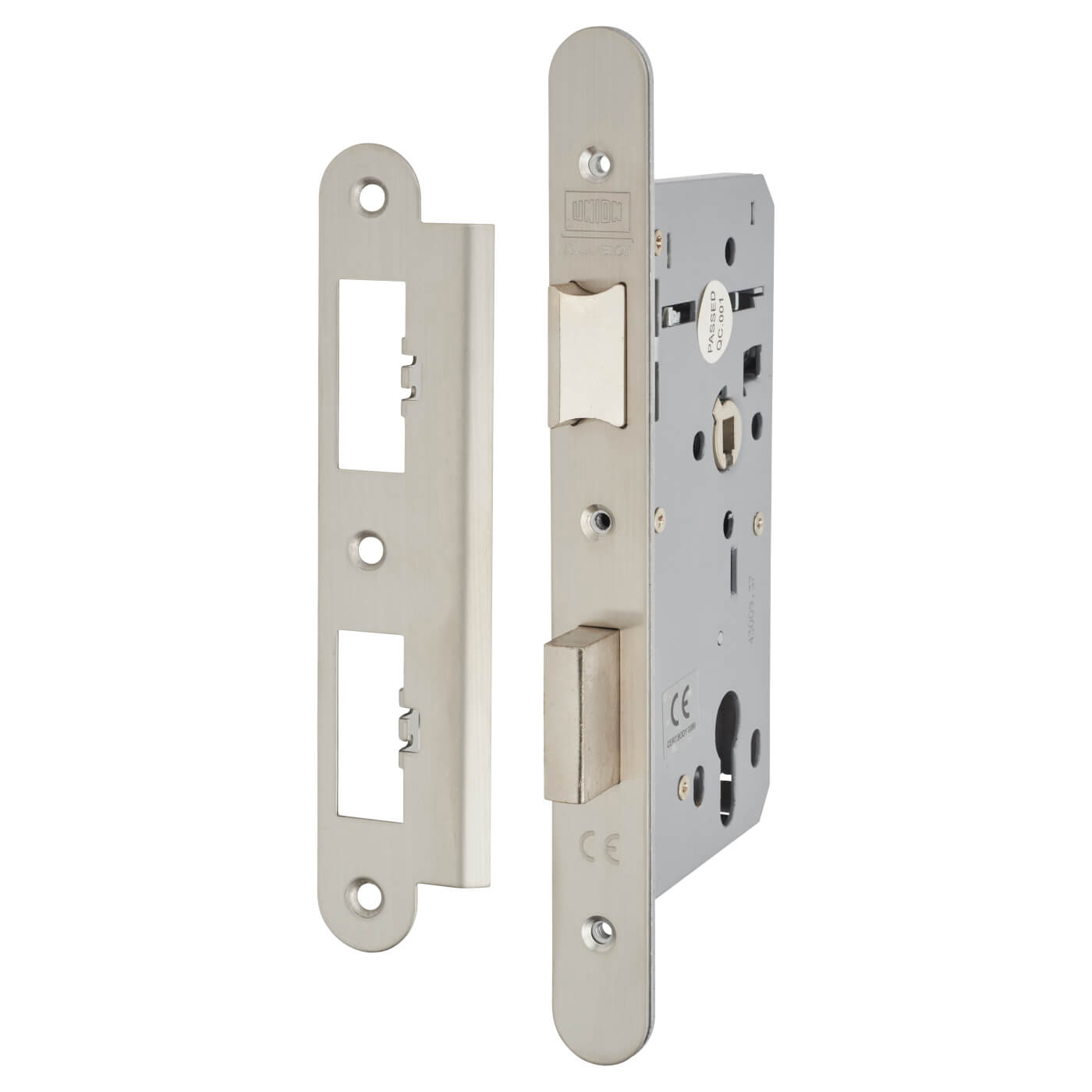

Heavy duty DIN euro sashlock is designed to deliver high performance locking for years, ideal for use in high frequency areas used by the public or where there is a chance of misuse
Latch follower has been successfully cycle tested to 3.5 million operations
Allows use of heavy unsprung architectural door furniture
Latchbolt can be withdrawn via lever handle and the deadbolt locked and unlocked by use of the cylinder key/turn - latch head will retract on the second turn
Quick reversible latch making it easy to hand on-site2-piece forend provides simple & clean aesthetics and covers the cylinder retaining screw
2-way adjustable strike plates with splinter guard ensure seamless fitting
Bolt through fixing
Outer forend can be removed when doors are being re-painted or stained
30 & 60 minute fire rating for timber doors
240 minute fire rating for metal doors
Fully tested to BS EN12209
NOTE: Intumescent should be used to ensure adherence to fire regulations - search for: 'intumescent lock pack'
Latch follower has been successfully cycle tested to 3.5 million operations
Allows use of heavy unsprung architectural door furniture
Latchbolt can be withdrawn via lever handle and the deadbolt locked and unlocked by use of the cylinder key/turn - latch head will retract on the second turn
Quick reversible latch making it easy to hand on-site2-piece forend provides simple & clean aesthetics and covers the cylinder retaining screw
2-way adjustable strike plates with splinter guard ensure seamless fitting
Bolt through fixing
Outer forend can be removed when doors are being re-painted or stained
30 & 60 minute fire rating for timber doors
240 minute fire rating for metal doors
Fully tested to BS EN12209
NOTE: Intumescent should be used to ensure adherence to fire regulations - search for: 'intumescent lock pack'
Product Specifications
| Backset (mm) | 60mm |
| Bolt Through Fixing | Bolt Through Fixing |
| British Standard | Yes |
| Case Size (mm) | 90mm |
| CE Rated | CE Rated |
| Centres (mm) | 72mm |
| Certifire | Yes |
| Equality Act Compliant | Equality Act Compliant |
| Finish | Satin Stainless Steel |
| Fire Rating | 30/60 & 240 |
| Material | Mild Steel |
| Option | Euro |
| Pack Quantity | 1 |
| Range | HD72 |
| Size (mm) | 235 x 165 x 24mm |
| Type | DIN Euro Sashlock |
| Profile | Radius |
| Keyed Alike | Not Keyed Alike |
| UKCA Approved | Yes |
| Brand | Union |
| Guarantee | 15 Years |
