Red Jig Supplement for Rafix 20 001.25.821

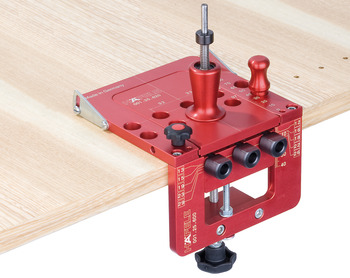

Red Jig Supplement for Rafix 20 - Aluminium Red, Anodized

Name: Red Jig Supplement for Rafix 20 - Aluminium Red, Anodized
Brand: Hafele
SKU: 001.25.821
Price: 204.89 GBP
Availability: InStock

Product Code: 001.25.821

Red Jig Supplement for Rafix 20 - Aluminium Red, Anodized

Product Code: 001.25.821

Download Brochure

Browse more Drill Guides & Jigs

8 In stock

£204.89

Ex. VAT: £170.74

Products Description
Technical Specifications

Article details
Interchangeable drill guides allow quick drilling pattern changes
Area of application
For Häfele Red Jig
Drill bits
20 mm
Order reference
Red drilling jig and spare parts to be ordered separately as required
Additional information attributes
The Rafix 20 drill guide is suitable for following connectors with identical drilling patterns:Rafix Tab, Slimfix, Onefix, Pushfix, Rafix HC.The Rafix 20 drill guide can be adjusted to suit other Tab connectors, e.g. Tab 18, Rafix 20 S, Tab 20 HC, using the scale on the basic jig.

Material	Aluminium
Colour/Finish	Red, anodized
Supplied with	1x Rafix 20 insert1x Depth gauge 32 for drill bit Ø 12, 15, 18, 20, 25, 26 mm withdepth stop and spring (001.25.771)1x HM multi-spur drill bit with countersinker, Ø 20 mm, RI, for woodthickness 19 mm (001.24.417)
