Red Jig Supplement-Hinge D35 48/6.0mm - Aluminium Red, Anodized
Product Code: 001.25.831
Red Jig Supplement-Hinge D35 48/6.0mm - Aluminium Red, Anodized
Product Code: 001.25.831
Out of Stock
Back in stock: 06/11/2026
£235.36
Ex. VAT: £196.13
- Products Description
- Technical Specifications
Article details
Interchangeable drill guides allow quick drilling pattern changes
Area of application
For precise drilling of drill holes for concealed hinges Ø 35 mm
Drill bits
35 mm
Order reference
Red drilling jig and spare parts to be ordered separately as required
Additional information attributes
Drill guides for concealed hinges 26 mm or other drilling patterns available on request.
Interchangeable drill guides allow quick drilling pattern changes
Area of application
For precise drilling of drill holes for concealed hinges Ø 35 mm
Drill bits
35 mm
Order reference
Red drilling jig and spare parts to be ordered separately as required
Additional information attributes
Drill guides for concealed hinges 26 mm or other drilling patterns available on request.
| Material | Aluminium |
| Colour/Finish | Red, anodized |
| Supplied with | 1x drill guide for concealed hinges 35 mm, 48/6 (001.25.731)1x depth gauge 48 with depth gauge, stop ring, spiral spring (001.25.772)With multi-spur drill bit HM Ø 35 mm, RI (001.06.669) |

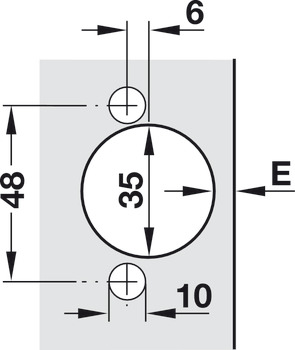

| Drilling pattern | 48/6 |
