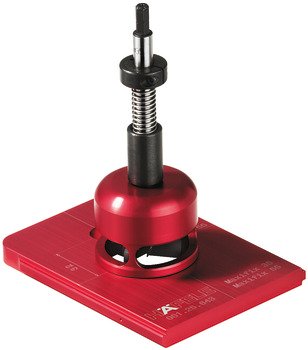

Red Jig Supplement for Maxifix - Aluminium Red, Anodized
Product Code: 001.25.894
Red Jig Supplement for Maxifix - Aluminium Red, Anodized
Product Code: 001.25.894
Out of Stock
Back in stock: 05/11/2026
£199.80
Ex. VAT: £166.50
- Products Description
- Technical Specifications
Article details
Interchangeable drill guides allow quick drilling pattern changes
Area of application
For Häfele Red Jig
Order reference
If no basic components of the Häfele Red Jig drilling jig are at hand, the basic jig with Cat. No.: 001.25.600 must also be ordered.
Additional information attributes
The Maxifix drill guide can be adjusted to suit other connectors, e.g. Häfele Ixconnect K 36/30, using the scale on the basic jig.Please check hole diameter before use.
Interchangeable drill guides allow quick drilling pattern changes
Area of application
For Häfele Red Jig
Order reference
If no basic components of the Häfele Red Jig drilling jig are at hand, the basic jig with Cat. No.: 001.25.600 must also be ordered.
Additional information attributes
The Maxifix drill guide can be adjusted to suit other connectors, e.g. Häfele Ixconnect K 36/30, using the scale on the basic jig.Please check hole diameter before use.
| Material | Aluminium |
| Colour/Finish | Red, anodized |
| Supplied with | 1x Maxifix drill guide, tightening distance adjustable from 55 to 35 mm (001.25.643)1 depth gauge 48 with depth gauge, stop ring, spiral spring (001.25.772)With multi-spur drill bit HM Ø 35 mm, RI (001.06.669)1x drilling sleeve 10mm (001.25.761) |
