Free Flap 1.7 Comp Set C Grey 7035 - Fitting: SteelCover Cap: Plastic Fitting: Nickel Plated
Product Code: 372.91.322
Free Flap 1.7 Comp Set C Grey 7035 - Fitting: SteelCover Cap: Plastic Fitting: Nickel Plated
Product Code: 372.91.322
8 In stock
£39.29
Ex. VAT: £32.74
This product is part of a range with 9 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1+ | £39.29 | — |
- Products Description
- Technical Specifications
Article details
Convenient handling, even with heavy flapsMinimum opening resistanceFlap locks in any position (multi-position stop)Smooth and soft closing actionStylish and compact design provides easy access to cabinet hangers and is suitable for use in furniture with narrow depthEasy, efficient and time-saving processingStylish cover caps in grey and whiteSustainable: Fitting also available with biologically degradable cover caps (optional)For additional measurements table, please see cat. page
Extremely little space requirementNo additional hinge connection requiredWith integrated soft closing mechanismFlap locks in any position
Area of applicationFor small, one-piece flaps made of wood or with aluminium frame
Lid materialWood, Glass, Aluminium frame
Flap typeone-piece
For cabinet height200 – 450 mm
Adjustment facilityHeight/side/tilting angle of front panel ±15 mm holding power
Model series
Free flap 1.7
Häfele Lifetime Guarantee
25 years
Order reference
For flaps with 20 mm aluminium frame, please order adapter separatelyOrder Varianta Ø 5 countersunk screws separatelyPush to open catch available
Warranty/guarantee information
Configuration required
Configuration required
Configuration required
Configuration required
Additional information attributes
The choice of the stay flap fitting and door catch model for handle-free front panels depends on the cabinet height and flap weight. For selecting the model please see sample measurements tables.
Convenient handling, even with heavy flapsMinimum opening resistanceFlap locks in any position (multi-position stop)Smooth and soft closing actionStylish and compact design provides easy access to cabinet hangers and is suitable for use in furniture with narrow depthEasy, efficient and time-saving processingStylish cover caps in grey and whiteSustainable: Fitting also available with biologically degradable cover caps (optional)For additional measurements table, please see cat. page
Extremely little space requirementNo additional hinge connection requiredWith integrated soft closing mechanismFlap locks in any position
Area of applicationFor small, one-piece flaps made of wood or with aluminium frame
Lid materialWood, Glass, Aluminium frame
Flap typeone-piece
For cabinet height200 – 450 mm
Adjustment facilityHeight/side/tilting angle of front panel ±15 mm holding power
Model series
Free flap 1.7
Häfele Lifetime Guarantee
25 years
Order reference
For flaps with 20 mm aluminium frame, please order adapter separatelyOrder Varianta Ø 5 countersunk screws separatelyPush to open catch available
Warranty/guarantee information
Configuration required
Configuration required
Configuration required
Configuration required
Additional information attributes
The choice of the stay flap fitting and door catch model for handle-free front panels depends on the cabinet height and flap weight. For selecting the model please see sample measurements tables.
| Material | Fitting: SteelCover cap: Plastic |
| Colour/Finish | Fitting: Nickel plated |
| Opening angle | 107 ° |
| Supplied with | Set includes:2x Stay flap fittings2x Cover caps for fitting2x Screw-on brackets for wooden flaps or flaps with aluminium frame, from frame width 45 mm1x Paper drilling templateInstallation instructions |

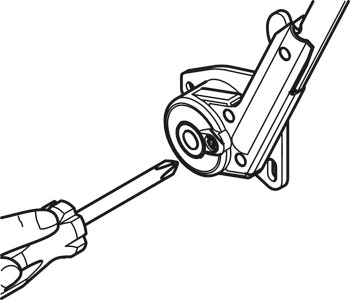

| Installation | Fitting for screw fixingFlap clips onto pre-mounted screw on brackets; referenceOpening angle can be reduced to 90° using opening angle restraint |
