Lid Stay Firmatop 130mm Sprung Steel Galvanised
Product Code: 373.58.704
Lid Stay Firmatop 130mm Sprung Steel Galvanised
Product Code: 373.58.704
330 In stock
£4.99
Ex. VAT: £4.16
This product is part of a range with 2 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 9 | £4.99 | — |
| 10 – 24 | £4.74 | Save 5% |
| 25 – 49 | £4.49 | Save 10% |
| 50+ | £4.00 | Save 20% |
- Products Description
- Technical Specifications
Article details
With springSpring pressure supports the flap when raised and holds it firmly against the cabinet when closedUnhanded design
Area of applicationfor wooden flaps
Versionwith locking mechanism in open position,required force for releasing the locking mechanism 55 N,Without braking effect
Lid materialWood
Mountingright and left hand use
Order reference
Order Hospa Ø 3.5 mm countersunk screws separately
Configuration required
Configuration required
Configuration required
Configuration required
System related attributes
A lid stay supports a maximum weight of approx. 5 kg. The locking mechanism releases if the load is heavier.
Additional information attributes
One or two stays required, depending on the weight of fla
With springSpring pressure supports the flap when raised and holds it firmly against the cabinet when closedUnhanded design
Area of applicationfor wooden flaps
Versionwith locking mechanism in open position,required force for releasing the locking mechanism 55 N,Without braking effect
Lid materialWood
Mountingright and left hand use
Order reference
Order Hospa Ø 3.5 mm countersunk screws separately
Configuration required
Configuration required
Configuration required
Configuration required
System related attributes
A lid stay supports a maximum weight of approx. 5 kg. The locking mechanism releases if the load is heavier.
Additional information attributes
One or two stays required, depending on the weight of fla
| Opening angle | 75 ° |

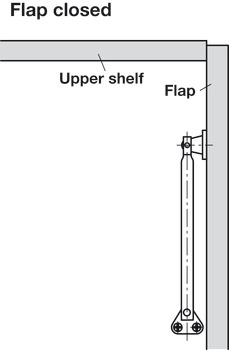

| Installation | Screw mounting to side panel and lid; referenceDetermine dim. C by trial mounting |
