Lid Stay Arretop 200mm Steel NP Nickel Plated
Product Code: 373.70.611
Lid Stay Arretop 200mm Steel NP Nickel Plated
Product Code: 373.70.611
164 In stock
£6.77
Ex. VAT: £5.64
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 1 | £6.77 | — |
| 2 – 4 | £6.41 | Save 5% |
| 5+ | £5.70 | Save 16% |
- Products Description
- Technical Specifications
Article details
With automatic lockFlap is locked when raised approx 75°Raising the flap further disengages the lock allowing it to be closedUnhanded designFor additional stay specifications, please see cat. page
Area of applicationfor wooden flaps
VersionWith locking mechanismWithout braking effect
Lid materialWood
Mountingright and left hand use
Order reference
Order Hospa Ø 3.0 mm countersunk screws separately
Configuration required
Configuration required
Configuration required
Configuration required
System related attributes

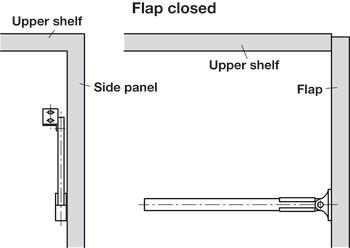

Opening the flap: Lift flap to approx. 75°, until the stay engages.Closing the flap: Lift flap up slightly. Locking mechanism is released.
With automatic lockFlap is locked when raised approx 75°Raising the flap further disengages the lock allowing it to be closedUnhanded designFor additional stay specifications, please see cat. page
Area of applicationfor wooden flaps
VersionWith locking mechanismWithout braking effect
Lid materialWood
Mountingright and left hand use
Order reference
Order Hospa Ø 3.0 mm countersunk screws separately
Configuration required
Configuration required
Configuration required
Configuration required
System related attributes
Opening the flap: Lift flap to approx. 75°, until the stay engages.Closing the flap: Lift flap up slightly. Locking mechanism is released.
| Material | Steel |
| Colour/Finish | Nickel plated |
| Opening angle | 75 ° |

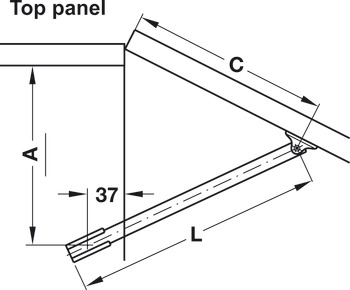

| Installation | Screw mounting to side panel and lid; referenceDetermine dim. C by trial mounting |
