Flap-Ex Flap Hinge
Product Code: 365.52.708
31 In stock
£16.19
Ex. VAT: £13.49
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 1 | £16.19 | — |
| 2 – 4 | £15.34 | Save 5% |
| 5+ | £13.63 | Save 16% |
Required to complete this product
These items must be ordered separately.
- Products Description
- Technical Specifications
Article details
Suitable for installation in front flap cabinets min. 820 mm high, min. 400 mm wide with min. installation depth 270 mm
Important: Designed to support a chipboard front with maximum dimensions 590 mm high, 400 mm wide, 19 mm thick, maximum weight when full 5 kg
Model series
Flap-Ex
Order reference
For installation of the front flap, 2 cup hinges and a Mini Latch catch should be ordered seperatelyOrder Varianta Ø 5 raised head and Hospa Ø 4.0 mm countersunk screws separately
Configuration required
Configuration required
Configuration required
Configuration required
Additional information attributes

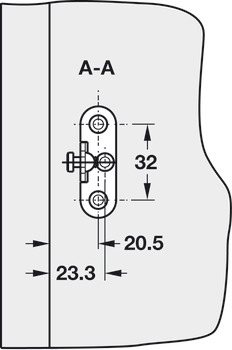

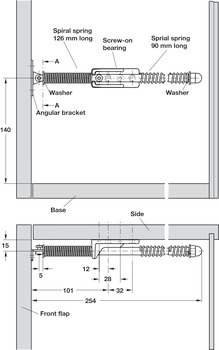

Mounting instructions:Screw fix angular bracket to front panel and bearing to side panelPush rod into bearing between the two spiral springs
Suitable for installation in front flap cabinets min. 820 mm high, min. 400 mm wide with min. installation depth 270 mm
Important: Designed to support a chipboard front with maximum dimensions 590 mm high, 400 mm wide, 19 mm thick, maximum weight when full 5 kg
Model series
Flap-Ex
Order reference
For installation of the front flap, 2 cup hinges and a Mini Latch catch should be ordered seperatelyOrder Varianta Ø 5 raised head and Hospa Ø 4.0 mm countersunk screws separately
Configuration required
Configuration required
Configuration required
Configuration required
Additional information attributes
Mounting instructions:Screw fix angular bracket to front panel and bearing to side panelPush rod into bearing between the two spiral springs

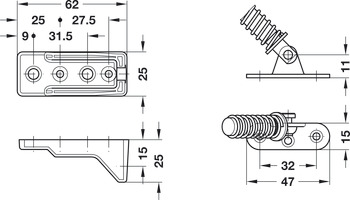

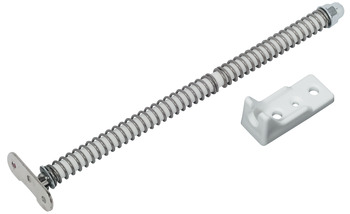

| Supplied with | 1 Angular bracket1 Rod with plastic sleeve2 Washers2 Spiral springs: front 126 mm long, rear 90 mm long1 Bearing, packed loose |
