Maxi Lid Stay 37mm Model A NP - Stay: Zinc AlloyScrew-fixing Brackets: SteelHinge Cover And Adjusting Screw: Plastic Fittings, Mounting Brackets And Screw-on Brackets: Zinc Plated, White, Black

Article details
With power assisted openingUnhanded designBy changing the installation position and combining Maxi with the appropriate accessories all common applications for flaps and openings can be realisedCan be used on one or both sides (depending on the size of the flap)Holding power can be adjusted individually to respective flap weight

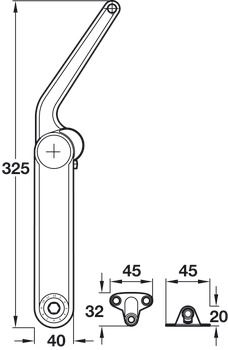

For additional mounting dimensions and sample measurement tables, please see cat. page
Area of applicationfor flaps made from wood or with aluminium frame, from frame width of 45 mm
Lid materialWood, Aluminium frame
Mountingright and left hand use
Adjustment facilityHeight ±2 mm side +3/-1 mm tilt ±1.5 mm and holding power adjustment with SW10 Allen key facility
Model series
Maxi
Häfele Lifetime Guarantee
25 years
Order reference
Soft closing mechanism and push door catch (for ‘push-to-open’ or ‘touch opening’ application) available, please order separatelyOrder Hospa Ø 3.5 raised head screws separately
