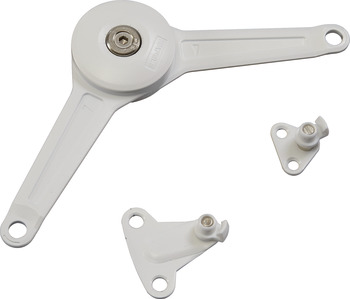

Duo Std Flap/Lid Stay 37mm Hospa Wht - Stay: Zinc Alloy
Product Code: 373.66.262
Duo Std Flap/Lid Stay 37mm Hospa Wht - Stay: Zinc Alloy
Product Code: 373.66.262
24 In stock
£23.08
Ex. VAT: £19.23
This product is part of a range with 4 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 1 | £23.08 | — |
| 2 – 4 | £21.92 | Save 5% |
| 5 – 9 | £20.77 | Save 10% |
| 10+ | £18.46 | Save 20% |
- Products Description
- Technical Specifications
Article details
Light version - min. installation depth 130 mmLess space required inside the cabinetWear-resistant friction coupling with large adjusting rangeUnhanded designWith braking and locking mechanismsSelf closing functionClip-mounting on pre-mounted screw fixing brackets, no tools requiredFor additional flap information, please see cat. page
Adjusting the arms (overshear) turns the lid stay into a flap stayOpening angle 75°, 90° or 110°Holding power adjustment with SW4 Allen key 008.28.446
overlapping the arms turns the lid stay into a flap stayLittle space requirement on cabinetWear-resistant friction coupling with large adjusting range
Area of applicationFor wooden lids/lids with aluminium frame, frame width from 45 mm
Lid materialWood, Aluminium frame
Flap typeone-piece
For cabinet width≥45 mm
For cabinet height≥255 mm
Mountingright and left hand use
Adjustment facilityHeight ±2 mm side +3/-1 mm tilt ±1.5 mm and pull adjustment facility
Order reference
Order Hospa Ø 3.5 raised head or Varianta Ø 5 mm countersunk screws separately
Warranty/guarantee information
Configuration required
Configuration required
Configuration required
Configuration required
Light version - min. installation depth 130 mmLess space required inside the cabinetWear-resistant friction coupling with large adjusting rangeUnhanded designWith braking and locking mechanismsSelf closing functionClip-mounting on pre-mounted screw fixing brackets, no tools requiredFor additional flap information, please see cat. page
Adjusting the arms (overshear) turns the lid stay into a flap stayOpening angle 75°, 90° or 110°Holding power adjustment with SW4 Allen key 008.28.446
overlapping the arms turns the lid stay into a flap stayLittle space requirement on cabinetWear-resistant friction coupling with large adjusting range
Area of applicationFor wooden lids/lids with aluminium frame, frame width from 45 mm
Lid materialWood, Aluminium frame
Flap typeone-piece
For cabinet width≥45 mm
For cabinet height≥255 mm
Mountingright and left hand use
Adjustment facilityHeight ±2 mm side +3/-1 mm tilt ±1.5 mm and pull adjustment facility
Order reference
Order Hospa Ø 3.5 raised head or Varianta Ø 5 mm countersunk screws separately
Warranty/guarantee information
Configuration required
Configuration required
Configuration required
Configuration required
| Material | Stay: Zinc alloy |
| Supplied with | Fixing brackets |
