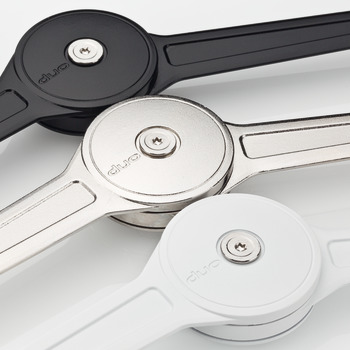

Duo Std Flap/Lid Stay 28mm Hospa NP - Stay: Zinc Alloy
Product Code: 373.66.611
Duo Std Flap/Lid Stay 28mm Hospa NP - Stay: Zinc Alloy
Product Code: 373.66.611
636 In stock
£12.20
Ex. VAT: £10.17
This product is part of a range with 4 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 1 | £12.20 | — |
| 2 – 4 | £11.59 | Save 5% |
| 5 – 9 | £10.98 | Save 10% |
| 10+ | £9.77 | Save 20% |
- Products Description
- Technical Specifications
Article details
Light version - min. installation depth 130 mmLess space required inside the cabinetWear-resistant friction coupling with large adjusting rangeUnhanded designWith braking and locking mechanismsSelf closing functionClip-mounting on pre-mounted screw fixing brackets, no tools requiredFor additional flap information, please see cat. page

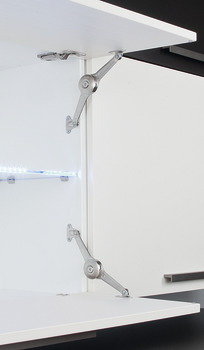

Adjusting the arms (overshear) turns the lid stay into a flap stayOpening angle 75°, 90° or 110°Holding power adjustment with SW4 Allen key 008.28.446
overlapping the arms turns the lid stay into a flap stayLittle space requirement on cabinetWear-resistant friction coupling with large adjusting range
Area of applicationFor wooden lids/lids with aluminium frame, frame width from 45 mm
Lid materialWood, Aluminium frame
Flap typeone-piece
For cabinet width≥45 mm
For cabinet height≥255 mm
Mountingright and left hand use
Adjustment facilityHeight ±2 mm side +3/-1 mm tilt ±1.5 mm and pull adjustment facility
Order reference
Order Hospa Ø 3.5 raised head or Varianta Ø 5 mm countersunk screws separately
Warranty/guarantee information
Configuration required
Configuration required
Configuration required
Configuration required
Light version - min. installation depth 130 mmLess space required inside the cabinetWear-resistant friction coupling with large adjusting rangeUnhanded designWith braking and locking mechanismsSelf closing functionClip-mounting on pre-mounted screw fixing brackets, no tools requiredFor additional flap information, please see cat. page
Adjusting the arms (overshear) turns the lid stay into a flap stayOpening angle 75°, 90° or 110°Holding power adjustment with SW4 Allen key 008.28.446
overlapping the arms turns the lid stay into a flap stayLittle space requirement on cabinetWear-resistant friction coupling with large adjusting range
Area of applicationFor wooden lids/lids with aluminium frame, frame width from 45 mm
Lid materialWood, Aluminium frame
Flap typeone-piece
For cabinet width≥45 mm
For cabinet height≥255 mm
Mountingright and left hand use
Adjustment facilityHeight ±2 mm side +3/-1 mm tilt ±1.5 mm and pull adjustment facility
Order reference
Order Hospa Ø 3.5 raised head or Varianta Ø 5 mm countersunk screws separately
Warranty/guarantee information
Configuration required
Configuration required
Configuration required
Configuration required
| Material | Stay: Zinc alloy |
| Supplied with | Fixing brackets |
