Kinvaro F-20 FoldFlap 600-1000x570mm - Fittings And Hinges: SteelCover Caps: Plastic
Product Code: 372.90.521
Kinvaro F-20 FoldFlap 600-1000x570mm - Fittings And Hinges: SteelCover Caps: Plastic
Product Code: 372.90.521
5 In stock
£189.24
Ex. VAT: £157.70
- Products Description
- Technical Specifications
Article details

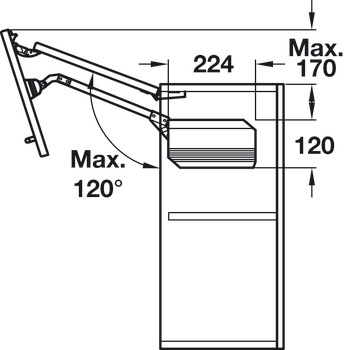

For folding flap doorsSimple to install and adjustConnecting hinge with finger protection and 3D adjustmentIntegrated adjustable damped action gives quiet, gentle closingFor flap height: 2x 285 or 2x 357 mmFor flap thickness: 18 mmHolds flap securely in any position, opening limiter adjustable up to 90°
Area of applicationFor wooden doors and glass doors with wide aluminium frame (40/50 mm) with and without handle
Cover colourCover caps: Grey RAL 7045
Lid materialWood, Glass, Aluminium frame
For lid width800 mm
Order reference
Concealed sprung hinges with 120° opening angle must be ordered separately
Configuration required
Configuration required
Configuration required
Configuration required
For folding flap doorsSimple to install and adjustConnecting hinge with finger protection and 3D adjustmentIntegrated adjustable damped action gives quiet, gentle closingFor flap height: 2x 285 or 2x 357 mmFor flap thickness: 18 mmHolds flap securely in any position, opening limiter adjustable up to 90°
Area of applicationFor wooden doors and glass doors with wide aluminium frame (40/50 mm) with and without handle
Cover colourCover caps: Grey RAL 7045
Lid materialWood, Glass, Aluminium frame
For lid width800 mm
Order reference
Concealed sprung hinges with 120° opening angle must be ordered separately
Configuration required
Configuration required
Configuration required
Configuration required
| Material | Fittings and hinges: SteelCover caps: Plastic |
| Supplied with | Pre-mounted Euro screws and fitting instructions |
| Installation | Screw fixing |
