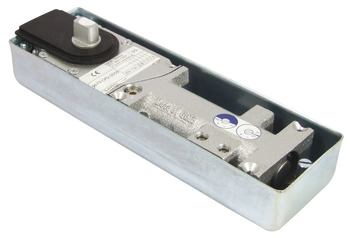

TS 500 NV Floor Spring Mech 1-4 Std

Article details
Floor spring mechanism to suit single and double action doors up to 1100 mm wide with flat-tapered, removable interlocked spindleClosing force size 1-4Closing range from 170° for single action doorsAdjustable closing force, adjustable closing speed, fixed backcheck and latch action and hold open versionSupplied with cement box - adjustable position (6 mm vertical, 10 mm lateral and 10 mm length)Safety valve prevents overloadingHold open @ 90º (single action only)*, not for fire doors*For double action doors each hold-open angle is 5º greater. For example, an 85º hold-open version will be 90º in double action doorsApproved CF 259 certifire, standard version onlyCE markedTested in accordance with BS EN 1154: 1997
Hold-open angle90° with single action doors, 95° with double action doors
For door weight≤150 kg
MountingFor DIN left and DIN right hand use
Area of application
For single action and double action doors
Version
with fixed backcheck,with or without hold-open function,Safety valve against overloading
Adjustment facility
Closing force, closing speed and latching action adjustable
Closing force
1–4 in accordance with EN 1154
Closing effect
from approx. 170°
Standard
Certified in compliance with EN 1154:1996/A1:2002
Grade
3|8|1 – 4|0|1|4
For door width max.
1100 mm
Order reference
Please order cover plate Cat. No. 932.10.130 separately.
Additional information attributes
*For double action doors each hold-open angle is 5° greater. For example an 85° hold-open version will be 90° in double action mode
