Dorma TS71 OH Dr Closer 3-4 Silver

Article details

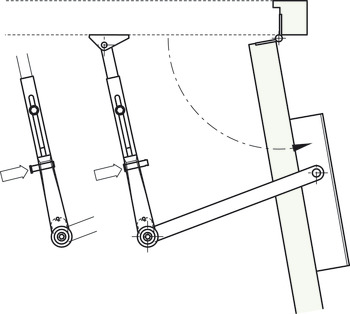

Power size 3-4Adjustable closing speed and latch actionOnly Fig 1 pull face and Fig 6. (parallel arm) push side approvedCE marked and Certifire accredited CF 268Tested in accordance with BS EN 1154:1997
TS71 is tested on timber intumescent sealed door assemblies with timber frames or insulated steel frames and has a fire resistance of up to 120 minutesAluminium body, mild steel arm
For number of doors
1-leaf doors
Adjustment facility
Closing force adjustable via arm hinge, closing speed continuously adjustable via arm, latching action continuously adjustable via arm assembly
Closing force
3 or 4 in accordance with EN 1154
Hold-open angle
≤150 °
Standard
Certified in compliance with EN 1154:1996/A1:2002
Grade
4|8|3 – 4|1|1|2
1837
Additional information attributes

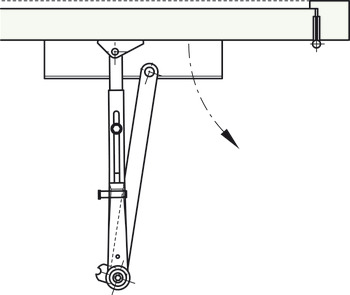

Parallel arm installation up to door width max. 950 mm
