MX Slim A30 Drawer Set PTO 128/270mm Wht - Steel
Product Code: 552.22.760
MX Slim A30 Drawer Set PTO 128/270mm Wht - Steel
Product Code: 552.22.760
Out of Stock
Back in stock: 05/11/2026
£31.93
Ex. VAT: £26.61
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 23 | £31.93 | — |
| 24 – 47 | £30.25 | Save 5% |
| 48+ | £26.89 | Save 16% |
- Products Description
- Technical Specifications
- Dimensions
Article details
Matrix Box Slim A 30 kg standard drawer sides, 128 mm high, with integrated rear panel holderLinear design drawer sides with 13 mm slim wallStandard drawer suits 16 mm drawer base and rear panelVertical inner sides for optimum capacityQuick to assemble and install
Runners are full extension with push to open mechanism on both sidesWith integrated push to open mechanismsWith integrated rear panel fitting
Type of pull out
Full extension, with Push-to-Open, with integrated rear panel fitting
Front fixing brackets
for screw fixing
Adjustment facility
Front gap adjustment: 0-3 mmHeight adjustment: 0-3 mmSide adjustment: ± 1 mmTilt adjustment: 0-3 mm
Häfele Lifetime Guarantee
20 years
30 kg
Order reference
Order Hospa 3.5 x 13 mm raised head screws, Hospa 3.5 x 16 countersunk screws and Varianta 5 x 14 mm countersunk screws separatelyVauth-Sagel bin systems VS ENVI XX, VS, ENVI Space Pro and ENVI drawer are suitable for use with Matrix Box A drawer sides
Matrix Box Slim A 30 kg standard drawer sides, 128 mm high, with integrated rear panel holderLinear design drawer sides with 13 mm slim wallStandard drawer suits 16 mm drawer base and rear panelVertical inner sides for optimum capacityQuick to assemble and install
Runners are full extension with push to open mechanism on both sidesWith integrated push to open mechanismsWith integrated rear panel fitting
Type of pull out
Full extension, with Push-to-Open, with integrated rear panel fitting
Front fixing brackets
for screw fixing
Adjustment facility
Front gap adjustment: 0-3 mmHeight adjustment: 0-3 mmSide adjustment: ± 1 mmTilt adjustment: 0-3 mm
Häfele Lifetime Guarantee
20 years
30 kg
Order reference
Order Hospa 3.5 x 13 mm raised head screws, Hospa 3.5 x 16 countersunk screws and Varianta 5 x 14 mm countersunk screws separatelyVauth-Sagel bin systems VS ENVI XX, VS, ENVI Space Pro and ENVI drawer are suitable for use with Matrix Box A drawer sides
| Material | Steel |
| Load bearing capacity | 30 kg; per pair |

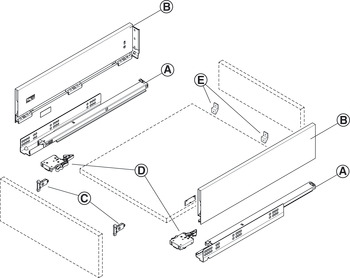

| Supplied with | Each set includes:1 pair drawer sides1 pair runners1 pair locking handles1 pair front fixing brackets, screw fixing2 fixing clips2 cover capsFixing screws for front fixing brackets |
| Drawer side height | 128 mm |
| Nominal length | 270 mm |
