Slido D-Li43 80M FitSet 1Dr 1.1m Gph Black - /finishanodized

Article details

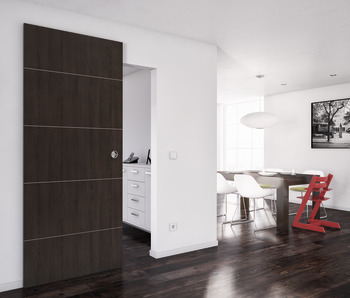

Allows wall mounted doors to slide across openings as if they were floatingUnique design means all tracks and fixings are hiddenSuitable for residential or commercial applications such as offices, meeting rooms or hotelsIncludes soft closing mechanismNot suitable for bi-parting doors
Floor must be flat
Model80-M
Running gear versioninvisible running equipment integrated in door
For door weight≤80 kg
For door width800 – 1,800 mm
Controller installation optionsWall mounting
For door thickness≥30 mm
Adjustment facility\t\t
Number of doors1
Suitable for
Hard floors (laminate, PVC, tiles) and soft floors (carpet, cork - use only with floor rail), Private living area
Number of doors per system max.
1
Ensure that the floor is levelBottom track is required for soft floorsPrepare wall structure for top roller
Door processing

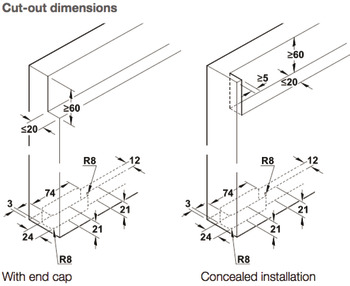

With recess, for screw fixing
Häfele Lifetime Guarantee
10 years
Order reference
Running track for soft floors to be ordered separately if required
Warranty/guarantee information
Configuration required
Configuration required
Configuration required
Additional information attributes

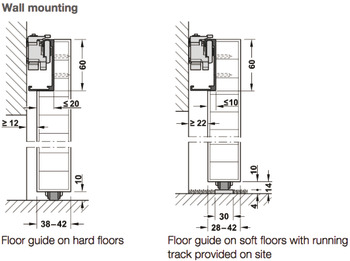

Top track can be recessed into the door for a wall to door clearance of 12 to 22 mm or face fixed with a clearance of 32 mm for skirting boardsThe bottom rollers need to run on a solid floor, if carpet is present then a running track strip must be used
