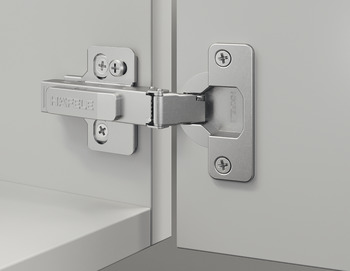

M310 110D Hinge Qck HO 45/9.5 w SC NP - Steel Nickel Plated
Product Code: 311.04.251
M310 110D Hinge Qck HO 45/9.5 w SC NP - Steel Nickel Plated
Product Code: 311.04.251
11,539 In stock
£2.14
Ex. VAT: £1.78
This product is part of a range with 5 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 49 | £2.14 | — |
| 50+ | £1.72 | Save 20% |
- Products Description
- Technical Specifications
- Dimensions
Article details
With or without integrated soft closing mechanism
Area of applicationFor wooden doors
Concealed hinge versionHalf overlay mounting/twin mounting
For door materialWood, Aluminium frame
Door processing for assemblywith cup drilling
Cup drilling Ø35 mm
Cup fixingfor screw fixing
Adjustment facilitySide adjustment ±3 mm
Häfele Lifetime Guarantee
25 years
Order reference
Order mounting plate and Hospa Ø 3.5 mm countersunk screws separately
Warranty/guarantee information
3446
3444
Additional information attributes

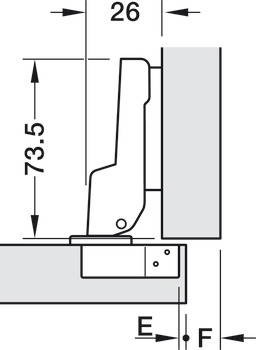

Dimensions and gap specifications in drawings and tables are calculated using factory settings and for mounting plate distance 0 mm
With or without integrated soft closing mechanism
Area of applicationFor wooden doors
Concealed hinge versionHalf overlay mounting/twin mounting
For door materialWood, Aluminium frame
Door processing for assemblywith cup drilling
Cup drilling Ø35 mm
Cup fixingfor screw fixing
Adjustment facilitySide adjustment ±3 mm
Häfele Lifetime Guarantee
25 years
Order reference
Order mounting plate and Hospa Ø 3.5 mm countersunk screws separately
Warranty/guarantee information
3446
3444
Additional information attributes
Dimensions and gap specifications in drawings and tables are calculated using factory settings and for mounting plate distance 0 mm
| Material | Steel |
| Colour/Finish | nickel plated |
| Opening angle | 110° |
| Installation | Door to cabinet for quick fixing with SM quick fixing system |
| Drilling pattern | 45/9.5 |
| Height | adjustment ±2 mm (via mounting plate) |
| Depth | adjustment ±2 mm |
| Cup drilling depth | 12 mm |
