Slido D-Li11 120C FitSet 1Dr w 2xSC

Article details
Smooth running quality system for commercial and residential interior doors where a small space between the top of the door and the bottom of the track is requiredFor 1-leaf and 2-leaf sliding doorsSuspension with recessed flange clip without tools
Trolley hangers have four ball bearing rollersTested to EN1527:2013, 100,000 cyclesScrew, hook and clip fixingWall mounting and ceiling installation
Model120C
For door weight≤120 kg
For door materialWood
Controller installation optionsCeiling installation, Wall mounting
For glass thickness with tempered safety glass6 mm, 8 mm, 5 mm
For glass thickness with laminated glass6-8.7 mm

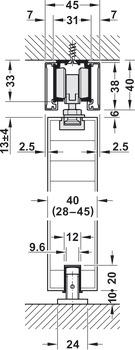

For door thickness28 – 45 mm
Adjustment facilityHeight adjustment: ±3 mm, Door height adjustable
Number of doors1
Number of doors per system max.
1 to 4
Note on door thickness
Ceiling installation - Max. 40 mmWall mounted installation with clip panel and concealed mounting bracket - 30 mm
Note on door height
≤3000 mm with frame doors
Note on door width
≤1500 mm with frame doors
Soft and self closing mechanism:Low opening force – easy and convenient operationTested with increased speed up to 0.5 m/sCan be retrofitted or replaced at any timeShock absorber:Closing speed with shock absorber tested up to 0.4 m/s
Door processing

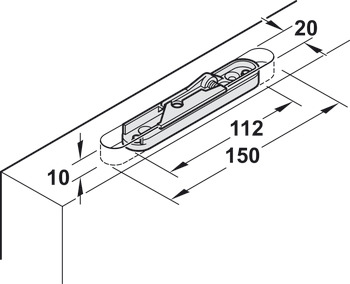

With recess
Häfele Lifetime Guarantee
10 years
Order reference
Track and accessories to be ordered separately
Warranty/guarantee information
Configuration required
Configuration required
Configuration required
Additional information attributes
Please note when using the shock absorber with retaining spring: The door may not close completely if the closing speed is too low, it it is too high, the door may bounce back slightly.Sets without or with soft and self closing mechanism can be retroffitted with soft and self closing mechanism or shock absorber, if required.
