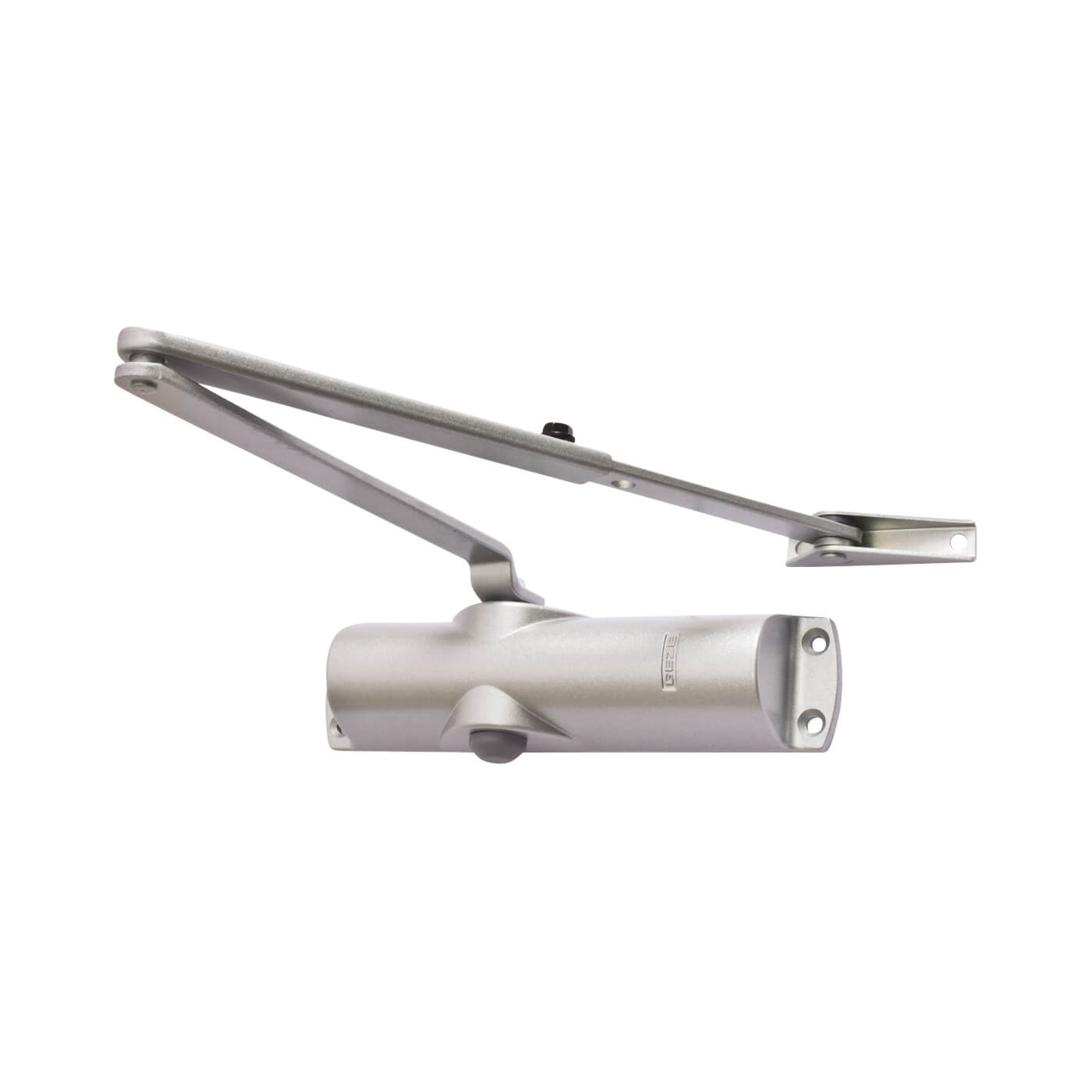

TS1000C Overhead Fire Door Closer - Power Size 3 - Push/Pull Mounting - Silver - Aluminium
Product Code: 975175P
TS1000C Overhead Fire Door Closer - Power Size 3 - Push/Pull Mounting - Silver - Aluminium
Product Code: 975175P
5 In stock
£39.24
Ex. VAT: £32.70
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 4 | £39.24 | — |
| 5+ | £40.37 | — |
- Products Description
- Technical Specifications
The GEZE TS 1000 C is a versatile overhead door closer with power size EN 2/3, suitable for single leaf internal doors up to 950mm wide, including fire and smoke protection doors
Ideal for residential and commercial settings
The reversible handing means this will fit left and right handed doors without conversion
Select between power size EN 2 and EN 3 by rotating the bearing block, meaning this door closer can accommodate different door sizes and weights
Now sized in a two-position template EN 2 & EN 3 via the shoe, with an additional mechanism position for EN 4
Adjustable closing speed allows for customization of the door’s closing speed to suit your specific requirements
Hydraulic latching action ensures the door closes securely by accelerating the door shortly before it closes completely
Fits discreetly into various door configurations due to the compact dimensions offering a neat installation
Can be installed on the hinge side or opposite hinge side, offering flexibility in door positioning
Tested and certified to BS EN 1154 - for use on fire and smoke protection doors up to 120 minutes, this door closer is compliant with fire door regulations
Ideal for residential and commercial settings
The reversible handing means this will fit left and right handed doors without conversion
Select between power size EN 2 and EN 3 by rotating the bearing block, meaning this door closer can accommodate different door sizes and weights
Now sized in a two-position template EN 2 & EN 3 via the shoe, with an additional mechanism position for EN 4
Adjustable closing speed allows for customization of the door’s closing speed to suit your specific requirements
Hydraulic latching action ensures the door closes securely by accelerating the door shortly before it closes completely
Fits discreetly into various door configurations due to the compact dimensions offering a neat installation
Can be installed on the hinge side or opposite hinge side, offering flexibility in door positioning
Tested and certified to BS EN 1154 - for use on fire and smoke protection doors up to 120 minutes, this door closer is compliant with fire door regulations
Product Specifications
| Arm Finish | Silver |
| Backcheck | Without Backcheck |
| Cam Action | No |
| CE Rated | CE Rated |
| Certifire | Yes |
| Duty | Light Duty |
| Finish | Silver |
| Fire Rating | 30/60/90 & 120 |
| Material | Aluminium |
| Max Door Weight (kg) | 60kg |
| Option | Fig 66 - Push/Pull Side Mounting |
| Pack Quantity | 1 |
| Range | TS1000C |
| Type | Closer - Overhead |
| Hold Open Function | Without Hold Open Function |
| Max Door Width (mm) | 950mm |
| Delayed Action | Without Delayed Action |
| Power Size | EN 3 |
| Track Arm | No |
| Brand | GEZE |
| Cover | Without Cover |
| Guarantee | 10 Years |
