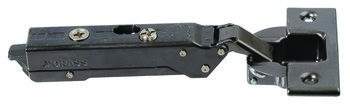

Tiomos Tipmatic+ 110D Hinge Clk FO Night - Steel
Product Code: 348.31.822
Tiomos Tipmatic+ 110D Hinge Clk FO Night - Steel
Product Code: 348.31.822
202 In stock
£4.52
Ex. VAT: £3.77
This product is part of a range with 10 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 4 | £4.52 | — |
| 5 – 9 | £4.30 | Save 5% |
| 10 – 24 | £4.07 | Save 10% |
| 25+ | £3.61 | Save 20% |
- Products Description
- Technical Specifications
- Dimensions
Area of application: For standard applications
Concealed hinge version: Full overlay
Crank type: Straight
For door material: Wood
Door processing for assembly: With cup drilling
Material: Steel
Opening angle: 110°
Cup drilling depth: 12.60 mm
Cup drilling Ø: 35 mm
Adjustment facility: Side adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2/+3 mm, Height adjustment depending on mounting plate
Installation: Door on cabinet without tools with clip system
Order reference: Order mounting plate and Hospa Ø 3.5 mm countersunk screws separately
Concealed hinge version: Full overlay
Crank type: Straight
For door material: Wood
Door processing for assembly: With cup drilling
Material: Steel
Opening angle: 110°
Cup drilling depth: 12.60 mm
Cup drilling Ø: 35 mm
Adjustment facility: Side adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2/+3 mm, Height adjustment depending on mounting plate
Installation: Door on cabinet without tools with clip system
Order reference: Order mounting plate and Hospa Ø 3.5 mm countersunk screws separately
| Adjustment facility | Side adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2/+3 mm, Height adjustment depending on mounting plate |
| Area of application | For standard applications |
| Concealed hinge version | Full overlay |
| Crank type | Straight |
| Cup drilling Ø | 35 mm |
| Door processing for assembly | With cup drilling |
| For door material | Wood |
| Order reference | Order mounting plate and Hospa Ø 3.5 mm countersunk screws separately |
| Material | Steel |
| Opening angle | 110° |
| Installation | Door on cabinet without tools with clip system |
| Cup drilling depth | 12.60 mm |
