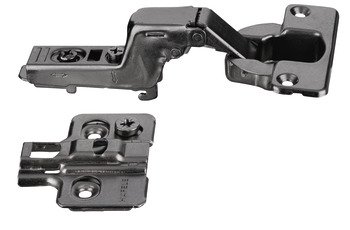

Slido F-Pa71 16/25B IF FixSet w SC Black - Steel
Product Code: 408.00.404
Slido F-Pa71 16/25B IF FixSet w SC Black - Steel
Product Code: 408.00.404
161 In stock
£1.12
Ex. VAT: £0.93
This product is part of a range with 2 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1+ | £1.12 | — |
- Products Description
- Technical Specifications
- Dimensions
Area of application: For Häfele Slido F-Park71 16B / 25B, Infront
Concealed hinge version: Inset
Crank type: Cranked
For door material: Wood
Material: Steel
Colour/finish: Black
Opening angle: 95°
Cup drilling depth: 13 mm
Cup drilling Ø: 40 mm
Cup fixing: For screw fixing
Drilling pattern: 52/7.5
Installation: Door on cabinet with quick fixing system SM
Supplied with: 1x Concealed hinge, opening angle 95°1x Cruciform mounting plate2x Fixing screws M4 x 6 mm, for mounting plate2x Fixing screws 3.5 x 15 mm, for hinge cup
Concealed hinge version: Inset
Crank type: Cranked
For door material: Wood
Material: Steel
Colour/finish: Black
Opening angle: 95°
Cup drilling depth: 13 mm
Cup drilling Ø: 40 mm
Cup fixing: For screw fixing
Drilling pattern: 52/7.5
Installation: Door on cabinet with quick fixing system SM
Supplied with: 1x Concealed hinge, opening angle 95°1x Cruciform mounting plate2x Fixing screws M4 x 6 mm, for mounting plate2x Fixing screws 3.5 x 15 mm, for hinge cup
| Area of application | For Häfele Slido F-Park71 16B / 25B, Infront |
| Concealed hinge version | Inset |
| Crank type | Cranked |
| Cup drilling Ø | 40 mm |
| Cup fixing | For screw fixing |
| For door material | Wood |
| Material | Steel |
| Colour/Finish | Black |
| Opening angle | 95° |
| Supplied with | 1x Concealed hinge, opening angle 95°1x Cruciform mounting plate2x Fixing screws M4 x 6 mm, for mounting plate2x Fixing screws 3.5 x 15 mm, for hinge cup |
| Installation | Door on cabinet with quick fixing system SM |
| Drilling pattern | 52/7.5 |
| Cup drilling depth | 13 mm |
