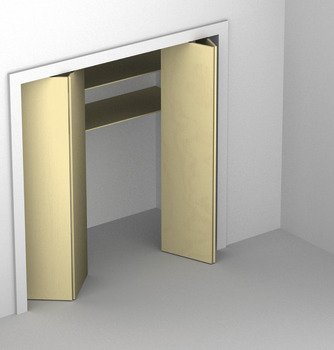

Hawa Multifold 30/W FitSet 2Pnl
Product Code: 409.52.050
Hawa Multifold 30/W FitSet 2Pnl
Product Code: 409.52.050
25 In stock
£635.57
Ex. VAT: £529.64
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 1 | £635.57 | — |
| 2 – 3 | £602.11 | Save 5% |
| 4+ | £535.21 | Save 16% |
- Products Description
- Technical Specifications
- Dimensions
Model: 30 W
For door weight: ≤30 kg
For door height: ≤2,600 mm
For door width: 200 – 500 mm
Version: For 2 panels
Area of application: Inset or overlay cabinet doors
For door material: Wood
For door thickness: 19 – 25 mm
Note on door weight: 60 kg per pair of doors
Material/finish: AluminiumSteelPlastic
Running position: Top
Running gear guided by: Ball bearing
Adjustment facility: Height adjustment ± 2 mm
Door adjustment via: Eccentric screw
Installation: Screw and press fixing
Order reference: Additional fittings, sealing profile strips, slide bolts and concealed hinges and mounting plates to be ordered separately
Supplied with: 1x Top track, 1.1 m length, with screw holes and brush seal, anodised aluminium1x Suspension unit, black/nickel plated4x Centre hinge, for panel to panel to joint, matt nickel plated steel1x Door catch, black plastic1x Track stopper/retainer, black plastic1 pair Interlocking fitting, to stabilise centre joint of 4 door applications, black plastic1x Surface equaliser, for side wall, black plastic
For door weight: ≤30 kg
For door height: ≤2,600 mm
For door width: 200 – 500 mm
Version: For 2 panels
Area of application: Inset or overlay cabinet doors
For door material: Wood
For door thickness: 19 – 25 mm
Note on door weight: 60 kg per pair of doors
Material/finish: AluminiumSteelPlastic
Running position: Top
Running gear guided by: Ball bearing
Adjustment facility: Height adjustment ± 2 mm
Door adjustment via: Eccentric screw
Installation: Screw and press fixing
Order reference: Additional fittings, sealing profile strips, slide bolts and concealed hinges and mounting plates to be ordered separately
Supplied with: 1x Top track, 1.1 m length, with screw holes and brush seal, anodised aluminium1x Suspension unit, black/nickel plated4x Centre hinge, for panel to panel to joint, matt nickel plated steel1x Door catch, black plastic1x Track stopper/retainer, black plastic1 pair Interlocking fitting, to stabilise centre joint of 4 door applications, black plastic1x Surface equaliser, for side wall, black plastic
| Adjustment facility | Height adjustment ± 2 mm |
| Area of application | Inset or overlay cabinet doors |
| Door adjustment via | Eccentric screw |
| For door material | Wood |
| For door weight | ≤30 kg |
| Material/finish | AluminiumSteelPlastic |
| Model | 30 W |
| Note on door weight | 60 kg per pair of doors |
| Order reference | Additional fittings, sealing profile strips, slide bolts and concealed hinges and mounting plates to be ordered separately |
| Running gear guided by | Ball bearing |
| Running position | Top |
| Version | For 2 panels |
| Supplied with | 1x Top track, 1.1 m length, with screw holes and brush seal, anodised aluminium1x Suspension unit, black/nickel plated4x Centre hinge, for panel to panel to joint, matt nickel plated steel1x Door catch, black plastic1x Track stopper/retainer, black plastic1 pair Interlocking fitting, to stabilise centre joint of 4 door applications, black plastic1x Surface equaliser, for side wall, black plastic |
| Installation | Screw and press fixing |
| For door height | ≤2,600 mm |
| For door thickness | 19 – 25 mm |
| For door width | 200 – 500 mm |
