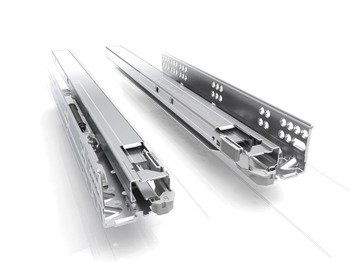

Dynapro Drawer Runner Slide Full 70kg 600mm x12 433.19.965

Dynapro Drawer Runner Slide Full 70kg 600mm x12 - Steel Zinc Plated, Pre-galvanized

Product Code: 433.19.965

Dynapro Drawer Runner Slide Full 70kg 600mm x12 - Steel Zinc Plated, Pre-galvanized

Product Code: 433.19.965
Download Brochure
Browse more Drawer Runners
396 In stock
£85.33
Ex. VAT: £71.11
Sold in packs of 12 — £1,023.91 per pack
This product is part of a range with 9 options. Select an option to filter, then choose the matching variant.
QuantityPack Price (inc. VAT)You Save
1+ packs£819.13Save 20%
Buy 1+ packs and save 20%
Sold in packs of 12
Order before 3pm for next-day dispatch
  • Products Description
  • Technical Specifications
Model series: Dynapro
Load bearing capacity: 70 kg
Type of pull out: Full extension
Features: With integrated liquid Soft-close®100% fully synchronised runner giving silent, smooth operation throughout the movement of the drawerImproved soft close function - with liquid in damper to give continuous soft closeIncredibly stable with the lowest deflection rates available
Adjustment facility: Height adjustment + 3.5 mm without toolsside adjustment ± 1.5 mmtilt adjustment + 4 mmdepth adjustment + 3.5 mm without tools using 4D clips
Material: Steel
Colour/finish: Zinc plated, Pre-galvanized
Mounting: Slide-on
Installation: 32 mm drilling pattern
Order reference: Front and rear 4D fixing clips, 433.19.090, or 3D fixing clips, 433.19.040, to be ordered separately depending on level of adjustment requiredVarianta Ø 5 mm countersunk screws, Hospa Ø 4.0 mm pan head screws and optional accessories to be ordered separatelyFor use with Vionaro drawer systemAlso available as add on push to open cartridge for handle-less applications using soft close runner, Tipmatic cartridge and accessories
Adjustment facility Height adjustment + 3.5 mm without toolsside adjustment ± 1.5 mmtilt adjustment + 4 mmdepth adjustment + 3.5 mm without tools using 4D clips
Features With integrated liquid Soft-close®100% fully synchronised runner giving silent, smooth operation throughout the movement of the drawerImproved soft close function - with liquid in damper to give continuous soft closeIncredibly stable with the lowest deflection rates available
Model series Dynapro
Mounting Slide-on
Order reference Front and rear 4D fixing clips, 433.19.090, or 3D fixing clips, 433.19.040, to be ordered separately depending on level of adjustment requiredVarianta Ø 5 mm countersunk screws, Hospa Ø 4.0 mm pan head screws and optional accessories to be ordered separatelyFor use with Vionaro drawer systemAlso available as add on push to open cartridge for handle-less applications using soft close runner, Tipmatic cartridge and accessories
Type of pull out Full extension
Material Steel
Colour/Finish Zinc plated, Pre-galvanized
Load bearing capacity 70 kg
Installation 32 mm drilling pattern
