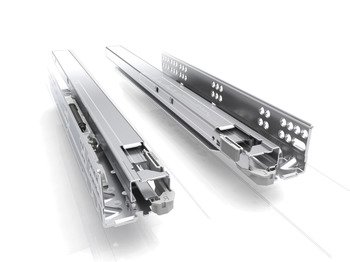

Dynapro Drawer Runner Slide Full 40kg 450mm x15 - Steel Zinc Plated, Pre-galvanized
Product Code: 433.19.971
Dynapro Drawer Runner Slide Full 40kg 450mm x15 - Steel Zinc Plated, Pre-galvanized
Product Code: 433.19.971
790 In stock
£39.87
Ex. VAT: £33.23
Sold in packs of 15 — £598.12 per pack
This product is part of a range with 16 options. Select an option to filter, then choose the matching variant.
| Quantity | Pack Price (inc. VAT) | You Save |
|---|---|---|
| 1+ packs | £478.49 | Save 20% |
- Products Description
- Technical Specifications
Model series: Dynapro
Load bearing capacity: 40 kg
Type of pull out: Full extension
Features: With integrated liquid Soft-close®100% fully synchronised runner giving silent, smooth operation throughout the movement of the drawerImproved soft close function - with liquid in damper to give continuous soft closeIncredibly stable with the lowest deflection rates available
Adjustment facility: Height adjustment + 3.5 mmside adjustment ± 1.5 mmtilt adjustment + 4 mmdepth adjustment + 3.5 mm
Material: Steel
Colour/finish: Zinc plated, Pre-galvanized
Mounting: Slide-on
Installation: 32 mm drilling pattern
Order reference: Front and rear 4D fixing clips, 433.19.090, or 3D fixing clips, 433.19.040, to be ordered separately depending on level of adjustment requiredVarianta Ø 5 mm countersunk screws, Hospa Ø 4.0 mm pan head screws and optional accessories to be ordered separatelyAlso available as add on push to open cartridge for handle-less applications using soft close runner, Tipmatic cartridge and accessoriesFor use with Vionaro drawer system
Load bearing capacity: 40 kg
Type of pull out: Full extension
Features: With integrated liquid Soft-close®100% fully synchronised runner giving silent, smooth operation throughout the movement of the drawerImproved soft close function - with liquid in damper to give continuous soft closeIncredibly stable with the lowest deflection rates available
Adjustment facility: Height adjustment + 3.5 mmside adjustment ± 1.5 mmtilt adjustment + 4 mmdepth adjustment + 3.5 mm
Material: Steel
Colour/finish: Zinc plated, Pre-galvanized
Mounting: Slide-on
Installation: 32 mm drilling pattern
Order reference: Front and rear 4D fixing clips, 433.19.090, or 3D fixing clips, 433.19.040, to be ordered separately depending on level of adjustment requiredVarianta Ø 5 mm countersunk screws, Hospa Ø 4.0 mm pan head screws and optional accessories to be ordered separatelyAlso available as add on push to open cartridge for handle-less applications using soft close runner, Tipmatic cartridge and accessoriesFor use with Vionaro drawer system
| Adjustment facility | Height adjustment + 3.5 mmside adjustment ± 1.5 mmtilt adjustment + 4 mmdepth adjustment + 3.5 mm |
| Features | With integrated liquid Soft-close®100% fully synchronised runner giving silent, smooth operation throughout the movement of the drawerImproved soft close function - with liquid in damper to give continuous soft closeIncredibly stable with the lowest deflection rates available |
| Model series | Dynapro |
| Mounting | Slide-on |
| Order reference | Front and rear 4D fixing clips, 433.19.090, or 3D fixing clips, 433.19.040, to be ordered separately depending on level of adjustment requiredVarianta Ø 5 mm countersunk screws, Hospa Ø 4.0 mm pan head screws and optional accessories to be ordered separatelyAlso available as add on push to open cartridge for handle-less applications using soft close runner, Tipmatic cartridge and accessoriesFor use with Vionaro drawer system |
| Type of pull out | Full extension |
| Material | Steel |
| Colour/Finish | Zinc plated, Pre-galvanized |
| Load bearing capacity | 40 kg |
| Installation | 32 mm drilling pattern |
