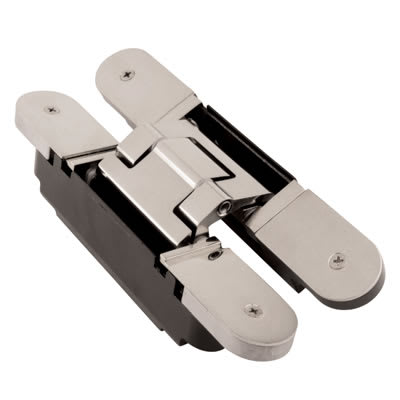

Tectus 3D FR Concealed Door Hinge - 160 x 28mm - F1 Matt Chrome - Pair - Mild Steel
Product Code: 664985P
Tectus 3D FR Concealed Door Hinge - 160 x 28mm - F1 Matt Chrome - Pair - Mild Steel
Product Code: 664985P
Out of Stock
£190.08
Ex. VAT: £158.40
This product is part of a range with 7 options. Select an option to filter, then choose the matching variant.
- Products Description
- Technical Specifications
Completely concealed for unrebated and rebated flush doors with timber, steel and aluminium frames
Opening angle up to 180 degrees and contains maintenance free bearings
Max door weight 80kg
Intumescent already integrated in to hinge body
3D Adjustable: +/- 3mm Side +/- 3mm Height +/- 1mm Compression
NOTE: Cannot be used with perko concealed closers
10 year guarantee
Opening angle up to 180 degrees and contains maintenance free bearings
Max door weight 80kg
Intumescent already integrated in to hinge body
3D Adjustable: +/- 3mm Side +/- 3mm Height +/- 1mm Compression
NOTE: Cannot be used with perko concealed closers
10 year guarantee
Product Specifications
| CE Rated | CE Rated |
| Duty | Heavy Duty |
| Finish | Satin Chrome |
| Fire Rating | 30 |
| Length (mm) | 160mm |
| Material | Mild Steel |
| Max Weight (kg) | 80kg |
| Pack Quantity | 2 |
| Size (mm) | 160 x 28mm |
| Type | Concealed Hinge |
| Width (mm) | 28mm |
| Finish Group | Chrome |
| Use | Interior & Exterior |
| Size Range (mm) | 6 Inch/150mm |
| Brand | Simonswerk |
| Guarantee | 10 Years |
| Video ID | 1323995 |
