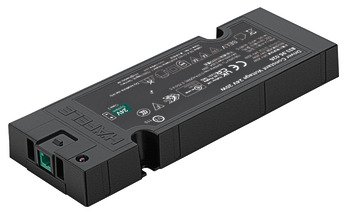

Loox5 LED Driver 24V/20W 100-240V Black - Plastic
Product Code: 833.95.026
Loox5 LED Driver 24V/20W 100-240V Black - Plastic
Product Code: 833.95.026
510 In stock
£24.37
Ex. VAT: £20.31
This product is part of a range with 4 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 1 | £24.37 | — |
| 2 – 4 | £23.09 | Save 5% |
| 5+ | £20.52 | Save 16% |
- Products Description
- Technical Specifications
Suitable for: 100–240 V AC: worldwide
Mains voltage: 100 – 240 V
Mains frequency: 50 – 60 Hz
Plug mains voltage: C8 2-pin
Version: With overload protection
Output voltage: 24 V DC
Area of application: LED
Material: Plastic
Colour/finish: Black
Output current: 0.83 A
Input ports: 1 x plug, Small appliances
Outputs: 1 x socket, Loox5 2-pin 24 V box to box
Secondary side circuit: Parallel connection
Installation: Screw fixing
Installation note: Provide for sufficient air supply and circulation at the mounting location. Provide inspection opening.
Efficiency at 230 V full load: 88 %
Efficiency at 115 V full load: 88 %
Power consumption at 115 V no load: 0.08 W
Power consumption at 230 V no load: 0.11 W
Weight: 100 g
Hafele Lifetime Guarantee: 7 years
Order reference: Loox C7 mains lead must be ordered separately
Supplied with: Mounting accessories
Warranty/Guarantee information: This product is covered by the Häfele Lifetime Guarantee
Mains voltage: 100 – 240 V
Mains frequency: 50 – 60 Hz
Plug mains voltage: C8 2-pin
Version: With overload protection
Output voltage: 24 V DC
Area of application: LED
Material: Plastic
Colour/finish: Black
Output current: 0.83 A
Input ports: 1 x plug, Small appliances
Outputs: 1 x socket, Loox5 2-pin 24 V box to box
Secondary side circuit: Parallel connection
Installation: Screw fixing
Installation note: Provide for sufficient air supply and circulation at the mounting location. Provide inspection opening.
Efficiency at 230 V full load: 88 %
Efficiency at 115 V full load: 88 %
Power consumption at 115 V no load: 0.08 W
Power consumption at 230 V no load: 0.11 W
Weight: 100 g
Hafele Lifetime Guarantee: 7 years
Order reference: Loox C7 mains lead must be ordered separately
Supplied with: Mounting accessories
Warranty/Guarantee information: This product is covered by the Häfele Lifetime Guarantee
| Area of application | LED |
| Efficiency at 115 V full load | 88 % |
| Efficiency at 230 V full load | 88 % |
| Hafele Lifetime Guarantee | 7 years |
| Input ports | 1 x plug, Small appliances |
| Installation note | Provide for sufficient air supply and circulation at the mounting location. Provide inspection opening. |
| Mains frequency | 50 – 60 Hz |
| Mains voltage | 100 – 240 V |
| Order reference | Loox C7 mains lead must be ordered separately |
| Output current | 0.83 A |
| Output voltage | 24 V DC |
| Outputs | 1 x socket, Loox5 2-pin 24 V box to box |
| Plug mains voltage | C8 2-pin |
| Power consumption at 115 V no load | 0.08 W |
| Power consumption at 230 V no load | 0.11 W |
| Secondary side circuit | Parallel connection |
| Suitable for | 100–240 V AC: worldwide |
| Version | With overload protection |
| Warranty/Guarantee information | This product is covered by the Häfele Lifetime Guarantee |
| Weight | 100 g |
| Material | Plastic |
| Colour/Finish | Black |
| Supplied with | Mounting accessories |
| Installation | Screw fixing |
