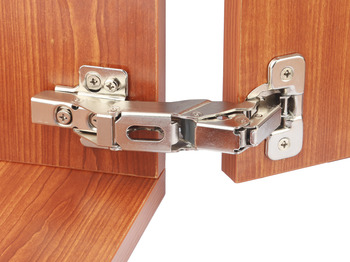

M310 155D Hinge Qck HO 45/9.5 w SC NP - Steel Nickel Plated
Product Code: 311.63.733
M310 155D Hinge Qck HO 45/9.5 w SC NP - Steel Nickel Plated
Product Code: 311.63.733
2,690 In stock
£2.83
Ex. VAT: £2.36
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 4 | £2.83 | — |
| 5 – 9 | £2.69 | Save 5% |
| 10 – 19 | £2.54 | Save 10% |
| 20+ | £2.26 | Save 20% |
- Products Description
- Technical Specifications
- Dimensions
Version: Zero protrusion
Crank type: Cranked
For door material: Wood
Material: Steel
Colour/finish: nickel plated
Opening angle: 155°
Cup drilling depth: 12 mm
Cup drilling Ø: 35 mm
Cup fixing: For screw fixing
Drilling pattern: 45/9.5
Adjustment facility: Side adjustment: ± 3 mm, Height adjustment: ± 2 mm (via mounting plate), Depth adjustment: 2.5 mm
Hafele Lifetime Guarantee: 25 years
Order reference: For use with super compact cruciform mounting plates 311.71.500/502/504Order Hospa Ø 3.5 mm countersunk screws separately
Warranty/Guarantee information: This product is covered by the Häfele Lifetime Guarantee
Crank type: Cranked
For door material: Wood
Material: Steel
Colour/finish: nickel plated
Opening angle: 155°
Cup drilling depth: 12 mm
Cup drilling Ø: 35 mm
Cup fixing: For screw fixing
Drilling pattern: 45/9.5
Adjustment facility: Side adjustment: ± 3 mm, Height adjustment: ± 2 mm (via mounting plate), Depth adjustment: 2.5 mm
Hafele Lifetime Guarantee: 25 years
Order reference: For use with super compact cruciform mounting plates 311.71.500/502/504Order Hospa Ø 3.5 mm countersunk screws separately
Warranty/Guarantee information: This product is covered by the Häfele Lifetime Guarantee
Product Specifications
| Material | Steel |
| Opening Angle | 155° |
| Adjustment facility | Side adjustment: ± 3 mm, Height adjustment: ± 2 mm (via mounting plate), Depth adjustment: 2.5 mm |
| Crank type | Cranked |
| Cup drilling Ø | 35 mm |
| Cup fixing | For screw fixing |
| For door material | Wood |
| Hafele Lifetime Guarantee | 25 years |
| Order reference | For use with super compact cruciform mounting plates 311.71.500/502/504Order Hospa Ø 3.5 mm countersunk screws separately |
| Version | Zero protrusion |
| Warranty/Guarantee information | This product is covered by the Häfele Lifetime Guarantee |
| Colour/Finish | nickel plated |
| Drilling pattern | 45/9.5 |
| Cup drilling depth | 12 mm |
