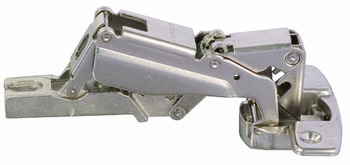

M310 155D Hinge Sld FO 45/9.5 wo SC - Steel Nickel Plated
Product Code: 311.93.560
M310 155D Hinge Sld FO 45/9.5 wo SC - Steel Nickel Plated
Product Code: 311.93.560
63,532 In stock
£1.84
Ex. VAT: £1.53
This product is part of a range with 2 options. Select to view the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 9 | £1.84 | — |
| 10 – 49 | £1.74 | Save 5% |
| 50 – 99 | £1.66 | Save 10% |
| 100+ | £1.46 | Save 20% |
- Products Description
- Technical Specifications
- Dimensions
Area of application: For wooden doors
Function: Without soft closing mechanism, With spring
Crank type: Straight
For door material: Wood
Door processing for assembly: With cup drilling
Material: Steel
Colour/finish: nickel plated
Opening angle: 155°
Cup drilling depth: 12 mm
Cup drilling Ø: 35 mm
Cup fixing: For screw fixing
Drilling pattern: 45/9.5
Adjustment facility: Side adjustment -5 mm, Height adjustment ±2 mm (via mounting plate), Depth adjustment +/-2.5 mm
Installation: Installation: Door to cabinet with slide-on system
Hafele Lifetime Guarantee: 25 years
Order reference: Order mounting plate and Hospa 3.5 mm countersunk screws separately
Warranty/Guarantee information: This product is covered by the Häfele Lifetime Guarantee
Function: Without soft closing mechanism, With spring
Crank type: Straight
For door material: Wood
Door processing for assembly: With cup drilling
Material: Steel
Colour/finish: nickel plated
Opening angle: 155°
Cup drilling depth: 12 mm
Cup drilling Ø: 35 mm
Cup fixing: For screw fixing
Drilling pattern: 45/9.5
Adjustment facility: Side adjustment -5 mm, Height adjustment ±2 mm (via mounting plate), Depth adjustment +/-2.5 mm
Installation: Installation: Door to cabinet with slide-on system
Hafele Lifetime Guarantee: 25 years
Order reference: Order mounting plate and Hospa 3.5 mm countersunk screws separately
Warranty/Guarantee information: This product is covered by the Häfele Lifetime Guarantee
Product Specifications
| Installation | Installation: Door to cabinet with slide-on system |
| Material | Steel |
| Opening Angle | 155° |
| Adjustment facility | Side adjustment -5 mm, Height adjustment ±2 mm (via mounting plate), Depth adjustment +/-2.5 mm |
| Area of application | For wooden doors |
| Crank type | Straight |
| Cup drilling Ø | 35 mm |
| Cup fixing | For screw fixing |
| Door processing for assembly | With cup drilling |
| For door material | Wood |
| Function | Without soft closing mechanism, With spring |
| Hafele Lifetime Guarantee | 25 years |
| Order reference | Order mounting plate and Hospa 3.5 mm countersunk screws separately |
| Warranty/Guarantee information | This product is covered by the Häfele Lifetime Guarantee |
| Colour/Finish | nickel plated |
| Drilling pattern | 45/9.5 |
| Cup drilling depth | 12 mm |
