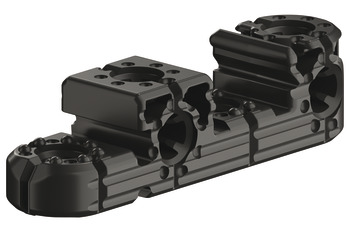

Ixconnect Uni Connector UC 16/64 Plastic Black - Polycarbonate Jet Black
Product Code: 262.00.100
Ixconnect Uni Connector UC 16/64 Plastic Black - Polycarbonate Jet Black
Product Code: 262.00.100
4,360 In stock
£0.75
Ex. VAT: £0.62
Sold in packs of 25 — £18.67 per pack
| Quantity | Pack Price (inc. VAT) | You Save |
|---|---|---|
| 1 pack | £16.81 | Save 10% |
| 2+ packs | £14.94 | Save 20% |
- Products Description
- Technical Specifications
Material: Polycarbonate
Colour/finish: Jet black
Area of application: Trade fair construction and store fixtures: Wall cladding (with and without substructure), wood paneling, partition walls, anti-fall panelsFurniture construction: Corner connections, surface connections (flush or with 8 mm offset), detachable connections of panels and fitting strips, doubling, as furniture foot, for cable routing, etc.
Installation: For screw fixing with chipboard screws Ø 4 mm or Euro screws for drill hole Ø 5 mm, for recess mounting (optional), suitable for screw fixing in 32 mm series drilled holes
Operating principle: Connection with clip spring and snap-in points, variable screw-on and snap-in positions for hooking in from the front, from above or at side, 90°, 135° or 180° angle possible, the strength of the snap-in connection can be varied by the number of connectors
Temperature range: -100/+135 °C
Dim. (L x W x H): 64 x 16 x 16 mm
Colour/finish: Jet black
Area of application: Trade fair construction and store fixtures: Wall cladding (with and without substructure), wood paneling, partition walls, anti-fall panelsFurniture construction: Corner connections, surface connections (flush or with 8 mm offset), detachable connections of panels and fitting strips, doubling, as furniture foot, for cable routing, etc.
Installation: For screw fixing with chipboard screws Ø 4 mm or Euro screws for drill hole Ø 5 mm, for recess mounting (optional), suitable for screw fixing in 32 mm series drilled holes
Operating principle: Connection with clip spring and snap-in points, variable screw-on and snap-in positions for hooking in from the front, from above or at side, 90°, 135° or 180° angle possible, the strength of the snap-in connection can be varied by the number of connectors
Temperature range: -100/+135 °C
Dim. (L x W x H): 64 x 16 x 16 mm
Product Specifications
| Installation | For screw fixing with chipboard screws Ø 4 mm or Euro screws for drill hole Ø 5 mm, for recess mounting (optional), suitable for screw fixing in 32 mm series drilled holes |
| Material | Polycarbonate |
| Area of application | Trade fair construction and store fixtures: Wall cladding (with and without substructure), wood paneling, partition walls, anti-fall panelsFurniture construction: Corner connections, surface connections (flush or with 8 mm offset), detachable connections of panels and fitting strips, doubling, as furniture foot, for cable routing, etc. |
| Dim. (L x W x H) | 64 x 16 x 16 mm |
| Operating principle | Connection with clip spring and snap-in points, variable screw-on and snap-in positions for hooking in from the front, from above or at side, 90°, 135° or 180° angle possible, the strength of the snap-in connection can be varied by the number of connectors |
| Temperature range | -100/+135 °C |
| Colour/Finish | Jet black |
