Aximat 100 230D ExAxle Hinge Vrt Adj HO - Zinc Alloy Nickel Plated
Product Code: 344.21.006

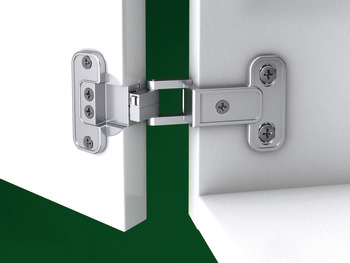

Aximat 100 230D ExAxle Hinge Vrt Adj HO - Zinc Alloy Nickel Plated
Product Code: 344.21.006
2,463 In stock
£11.38
Ex. VAT: £9.48
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 9 | £11.38 | — |
| 10 – 19 | £10.81 | Save 5% |
| 20 – 49 | £10.24 | Save 10% |
| 50+ | £9.10 | Save 20% |
- Products Description
- Technical Specifications
- Dimensions
Area of application: For hinging one half overlay door, side panel mounted
Version: With exposed axle, with springWith catch
Material: Zinc alloy
Colour/finish: nickel plated
Opening angle: 230°
For door thickness: 16 – 20 mm
Side panel thickness: ≥19 mm
Cup drilling depth: 13.30 mm
Cup drilling Ø: 35 mm
Cup fixing: For screw fixing
Drilling pattern: 52/5.5
Door overlay: 5.50 mm
Adjustment facility: Lateral adjustment up to - 2 mm, Vertical adjustment ± 2 mm
Installation: Screw fixing
Order reference: Order Varianta Ø 3 & Ø 5 cylindrical head and Hospa Ø 3.5 mm raised head screws separately
Version: With exposed axle, with springWith catch
Material: Zinc alloy
Colour/finish: nickel plated
Opening angle: 230°
For door thickness: 16 – 20 mm
Side panel thickness: ≥19 mm
Cup drilling depth: 13.30 mm
Cup drilling Ø: 35 mm
Cup fixing: For screw fixing
Drilling pattern: 52/5.5
Door overlay: 5.50 mm
Adjustment facility: Lateral adjustment up to - 2 mm, Vertical adjustment ± 2 mm
Installation: Screw fixing
Order reference: Order Varianta Ø 3 & Ø 5 cylindrical head and Hospa Ø 3.5 mm raised head screws separately
Product Specifications
| Installation | Screw fixing |
| Material | Zinc alloy |
| Opening Angle | 230° |
| Adjustment facility | Lateral adjustment up to - 2 mm, Vertical adjustment ± 2 mm |
| Area of application | For hinging one half overlay door, side panel mounted |
| Cup drilling Ø | 35 mm |
| Cup fixing | For screw fixing |
| Door overlay | 5.50 mm |
| Order reference | Order Varianta Ø 3 & Ø 5 cylindrical head and Hospa Ø 3.5 mm raised head screws separately |
| Version | With exposed axle, with springWith catch |
| Colour/Finish | nickel plated |
| Drilling pattern | 52/5.5 |
| For door thickness | 16 – 20 mm |
| Side panel thickness | ≥19 mm |
| Cup drilling depth | 13.30 mm |
