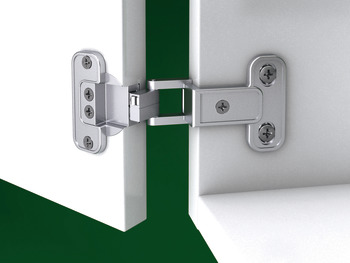

Aximat 100 180D ExAxle Hinge Lat Adj TO - Zinc Alloy Nickel Plated
Product Code: 344.21.007
Aximat 100 180D ExAxle Hinge Lat Adj TO - Zinc Alloy Nickel Plated
Product Code: 344.21.007
1,232 In stock
£15.46
Ex. VAT: £12.88
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 9 | £15.46 | — |
| 10 – 19 | £14.69 | Save 5% |
| 20 – 49 | £13.91 | Save 10% |
| 50+ | £12.37 | Save 20% |
- Products Description
- Technical Specifications
- Dimensions
Area of application: Suitable for twin mounting, flush fitting doors
Version: With exposed axle, with springWith catch
Material: Zinc alloy
Colour/finish: nickel plated
Opening angle: 180°
For door thickness: ≤20.5 mm
Side panel thickness: ≥19 mm
Cup drilling depth: 13.50 mm
Cup drilling Ø: 26.50 mm
Cup fixing: For screw fixing
Drilling pattern: 52/5.5
Door overlay: 5.50 mm
Adjustment facility: Lateral adjustment up to - 2 mm, Vertical adjustment ± 2 mm
Installation: Screw fixing
Order reference: Order Varianta Ø 3 & Ø 5 cylindrical head and Hospa Ø 3.5 mm raised head screws separately
Version: With exposed axle, with springWith catch
Material: Zinc alloy
Colour/finish: nickel plated
Opening angle: 180°
For door thickness: ≤20.5 mm
Side panel thickness: ≥19 mm
Cup drilling depth: 13.50 mm
Cup drilling Ø: 26.50 mm
Cup fixing: For screw fixing
Drilling pattern: 52/5.5
Door overlay: 5.50 mm
Adjustment facility: Lateral adjustment up to - 2 mm, Vertical adjustment ± 2 mm
Installation: Screw fixing
Order reference: Order Varianta Ø 3 & Ø 5 cylindrical head and Hospa Ø 3.5 mm raised head screws separately
Product Specifications
| Installation | Screw fixing |
| Material | Zinc alloy |
| Opening Angle | 180° |
| Adjustment facility | Lateral adjustment up to - 2 mm, Vertical adjustment ± 2 mm |
| Area of application | Suitable for twin mounting, flush fitting doors |
| Cup drilling Ø | 26.50 mm |
| Cup fixing | For screw fixing |
| Door overlay | 5.50 mm |
| Order reference | Order Varianta Ø 3 & Ø 5 cylindrical head and Hospa Ø 3.5 mm raised head screws separately |
| Version | With exposed axle, with springWith catch |
| Colour/Finish | nickel plated |
| Drilling pattern | 52/5.5 |
| For door thickness | ≤20.5 mm |
| Side panel thickness | ≥19 mm |
| Cup drilling depth | 13.50 mm |
